What’s an A-Frame Rack?

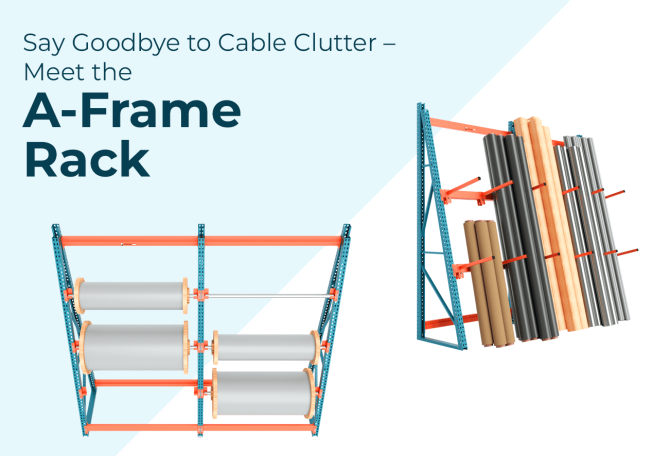

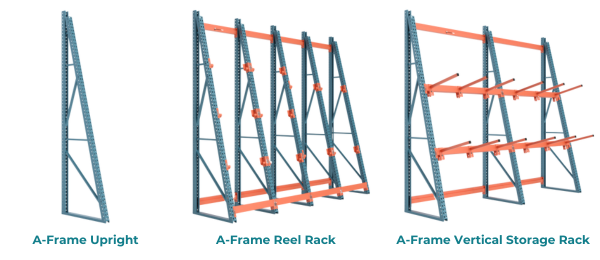

It’s called an A-frame because—surprise—it’s shaped like the letter “A.” Two angled uprights meet at the top (typically at 45 degrees or less), creating a stable frame that can handle heavy loads without eating up floor space. Thus, A-shaped frames come in a few variations:
A-Frame Uprights for general storage.

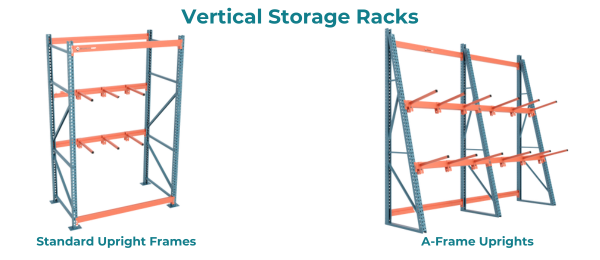

A-Frame Vertical Storage Rack equipped with divider arms for long materials like conduit.
A-Frame Reel Rack designed specifically for cable and wire spools.

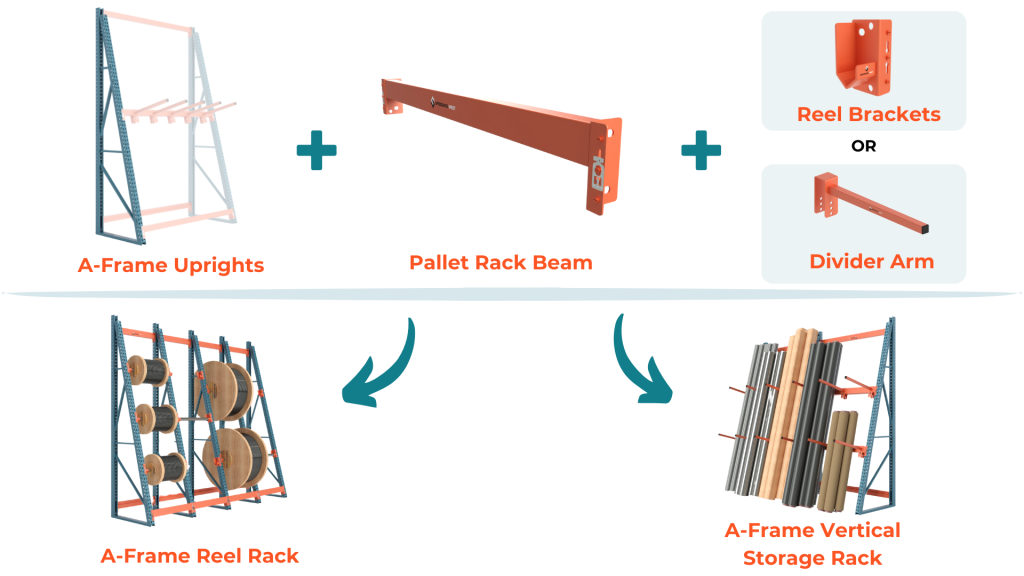

The Main Parts of an A-frame Rack
The materials of construction of the A-frame vary depending on the industry. In the electrical field, heavy-duty welded steel upright frames are the standard for high-capacity cable reel storage. Our design uses open-back roll-formed C-shaped columns made from flat coil stock steel, with horizontal and diagonal bracing between uprights for added stability.
- Connection Points: Options include slotted, structural, or teardrop (the U.S. standard).
- Accessories: Add reel brackets for secure storage and easy handling of wire, cable, or rope spools, or divider arms for vertical storage of long materials like conduit, PVC, aluminum, or timber.
- Customization: Adapt sizes, capacities, and layouts to fit your job site—think adjustable reel brackets for 6-inch to 24-inch spools or divider arms spaced for 10-foot conduits.
Advantages of A-Frame Uprights for Cable & Wire Spools
Here are some advantages of using A-Frame uprights for cable management:
- Efficiency: Organized spools on adjustable axle brackets ensure clear visibility and quick access. As a result, it reduces retrieval time compared to floor storage.
- Space Optimization: Vertical storage maximizes warehouse or trailer space, allowing more spools to be stored in a compact footprint compared to floor piles, ideal for constrained environments.
- Reduced Cable Damage: Properly supported spools (up to 2,000 lbs per bracket pair) prevent nicks, kinks, or otherwise damage.
- Safety: Stable A-Frame designs meet OSHA standards (e.g., 29 CFR 1910.176) for secure material handling, minimizing trip hazards, and keeping your crew from injury.
- Scalability: Add more units or adjust layouts as your storage needs grow.
Advantages of A-Frame Uprights with Divider Arms
Here are some advantages that give you an A-frame rack with divider arms:
- Efficiency: Keeps long materials—such as timber, PVC piping, aluminum, or plastic conduit—separated and easy to identify, reducing time spent searching.
- Adjustable Storage: Divider arms can be repositioned to create custom-width compartments, letting you adapt the rack to changing inventory.
- Space Optimization: Stores materials vertically, making the most of narrow aisles or tight work areas without sacrificing accessibility.
- Easy Reconfiguration: Divider positions can be changed without special tools or installation crews, so you can modify storage on the fly.
- Improved Safety: Vertical storage reduces tripping hazards and keeps long materials from warping, bowing, or being damaged on the floor.

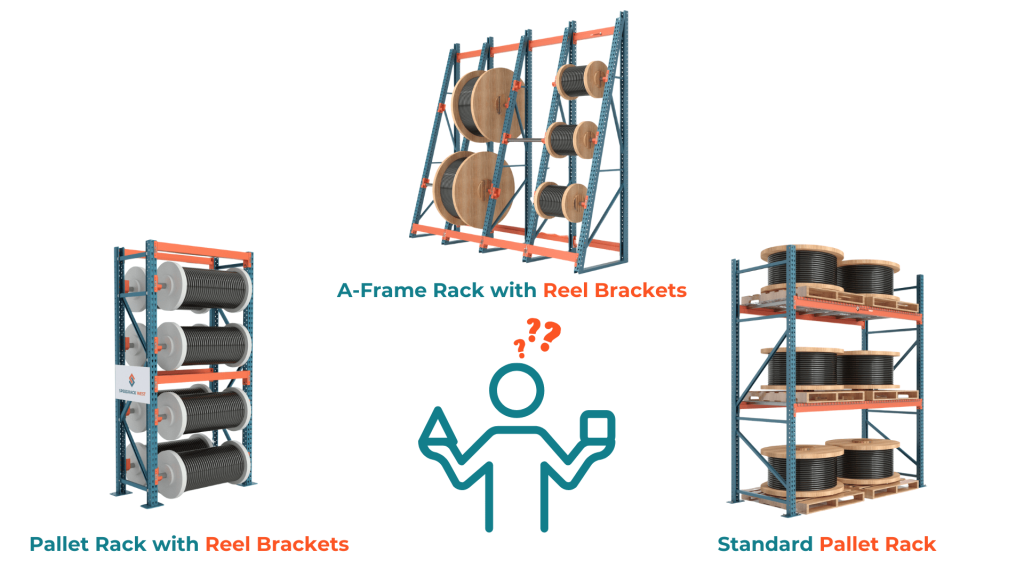

A-Frame Reel Rack vs. Steel Pallet Rack for Spool Storage
Choosing the right storage solution for wire, cable, or chain spools can significantly impact your warehouse efficiency and productivity. A-Frame reel racks and steel pallet racks offer distinct advantages, depending on your operational needs. This comparison helps professionals select the best system for their workflow.
Steel Pallet Racks
- Versatile storage by adding wire mesh to store diverse items, from boxes to palletized spools (e.g., 36″–72″ diameters).
- Adapt for spools by installing reel brackets, compatible with standard teardrop racks (36″–48″ deep).
- Downside: Not as efficient for cutting partial wire lengths. Often requires moving the whole spool.
- Designed specifically for cable, wire, and similar items.
- Each spool is visible and accessible without moving others.
- Allows cutting only the length you need directly from the rack—no unloading required.
- Handles various spool sizes easily.
- Quick to install— no need for a professional crew to set it up.
If you only occasionally store wire, pallet racks may be fine. But if spool handling is part of your daily workflow, A-frame reel racks will save more time and space.
Tips for Utilizing A-frame Racks
For Different Types of Cable and Wire:
- Use wider divider arms or adjustable reel brackets for thicker cables or large spools.
- Lighter, more delicate wires benefit from extra padding or separators to avoid tangling and damage.
- Label cables by gauge or type near their storage area for quick identification (e.g., “12 AWG” or “THHN”).
For Small or Congested Storage Areas:
- Vertical A-frame racks with divider arms maximize floor space by storing materials upright.
- Use tiered rack layouts to take full advantage of vertical clearance in your warehouse or trailer.
- Consider compact, foldable racks that can be stored away when not in use.
For Large Warehouses or Long-Term Storage:
- Invest in heavy-duty steel A-frame racks anchored securely for long-term durability.
- Implement a systematic inventory rotation (first in, first out) to avoid cable degradation from long storage.
- Schedule regular safety audits and maintenance checks.
Maintenance Tips
- Lubricate reel brackets monthly for smooth spool rotation.
- Conduct quarterly safety audits to check for loose bolts or damaged components.
- Clean racks regularly to prevent dust buildup, especially in dusty job sites.
