Top Pallet Rack Accessories to Keep Your Warehouse Safe

That kind of mess is easy to prevent with the right rack accessories. Here’s how each one keeps that first accident from ever happening again.

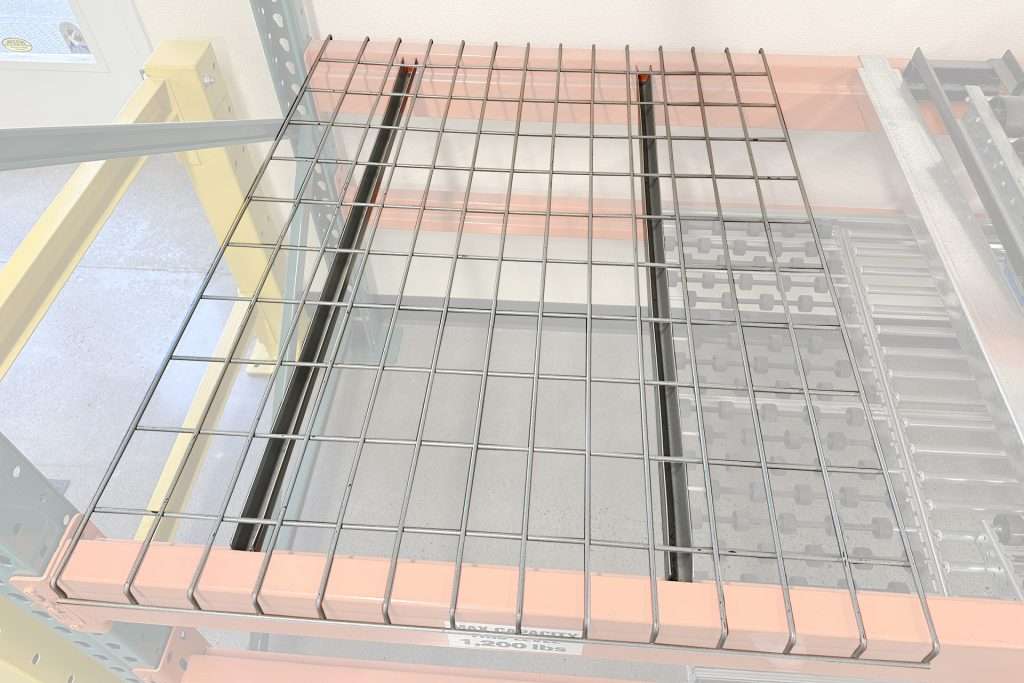

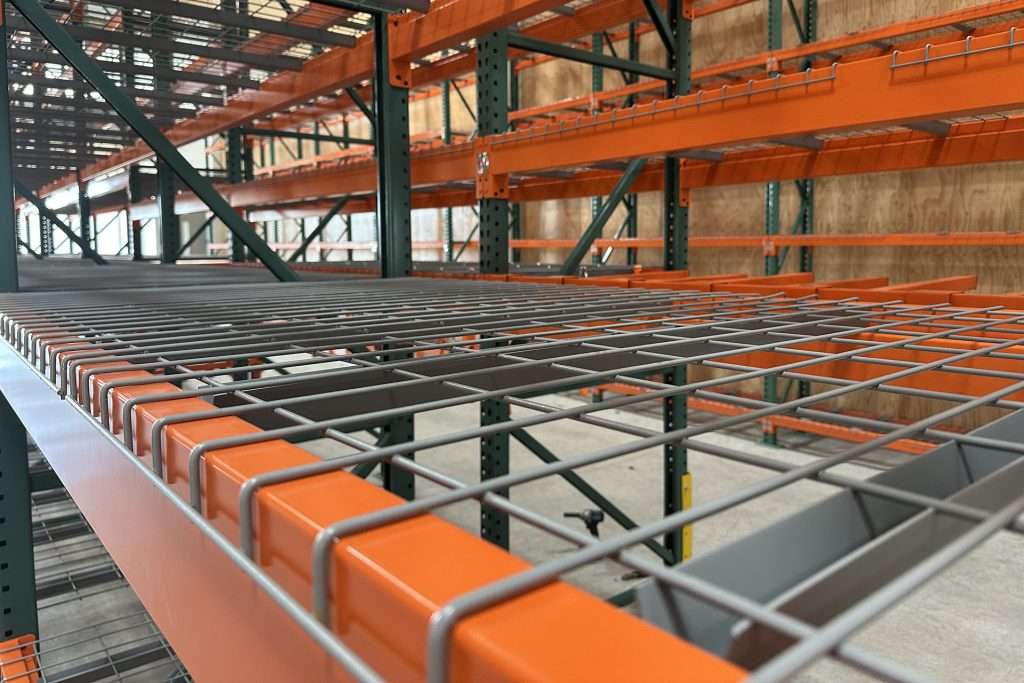

Wire Mesh Decks: Steady Support for Everyday Loads

In that forklift example, the deck gave out because it wasn’t the right size. Wire mesh decks prevent that. They drop right onto your pallet rack beams, locking in place without tools. Welded wire grids turn open beams into solid, secure shelves.

• Keeps loads from sagging: Each level holds up to 2,000 lbs evenly — no more pallets tipping mid-shift.
• Improves airflow and cleaning: Open 2″ x 4” mesh lets dust and debris fall through, cutting fire risk and mold — especially in Texas humidity.
• Available in several styles that lock over the beam edge for extra stability.

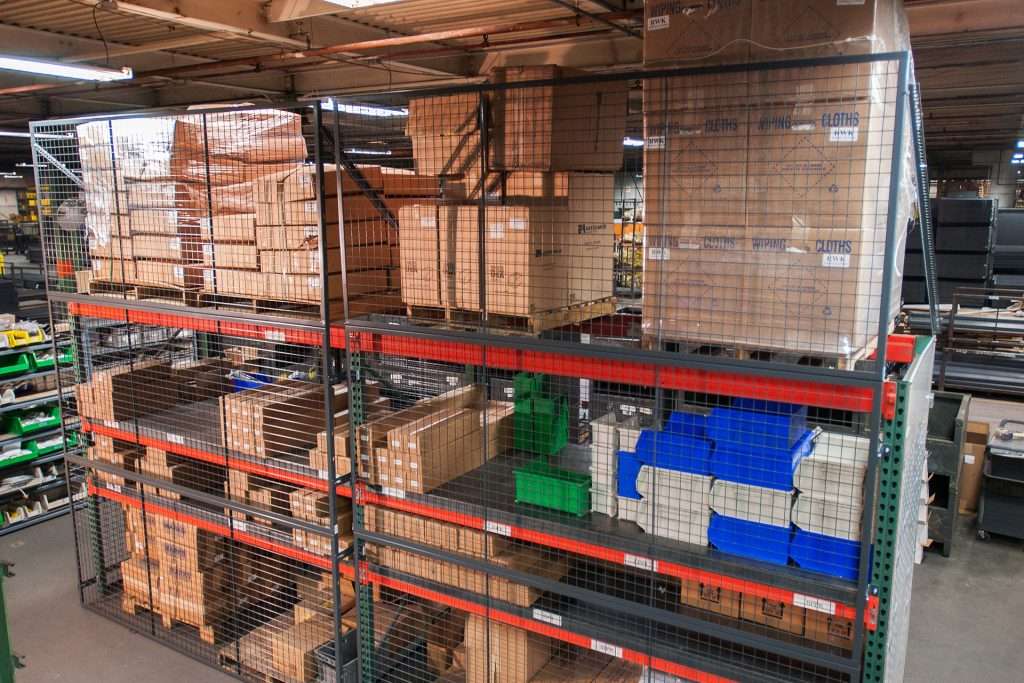

Rack Back Protectors: Block Backside Spills

Loads don’t just fall forward — they can tip backward too, especially with overhanging pallets or a bad lift. Rack back protectors, like wire mesh back guard panels or heavy-duty load stop screens, bolt to the back of your uprights to stop that. They’re built from 10-gauge, 2″ x 2″ wire on a steel frame, stackable up to full rack height, and come with offset brackets for pallets that hang over the edge.

• Stops inventory from tumbling into walkways: Heavy-duty screens fit 48″ high and up to 144″ wide, custom-built for teardrop or structural racks to catch boxes or loose parts before they hit the floor.
• Quick bolt-on: Predrilled holes and standard hardware mean you add them level by level, no full shutdown needed. They can be installed at any level on your rack or mounted directly to support posts if needed.

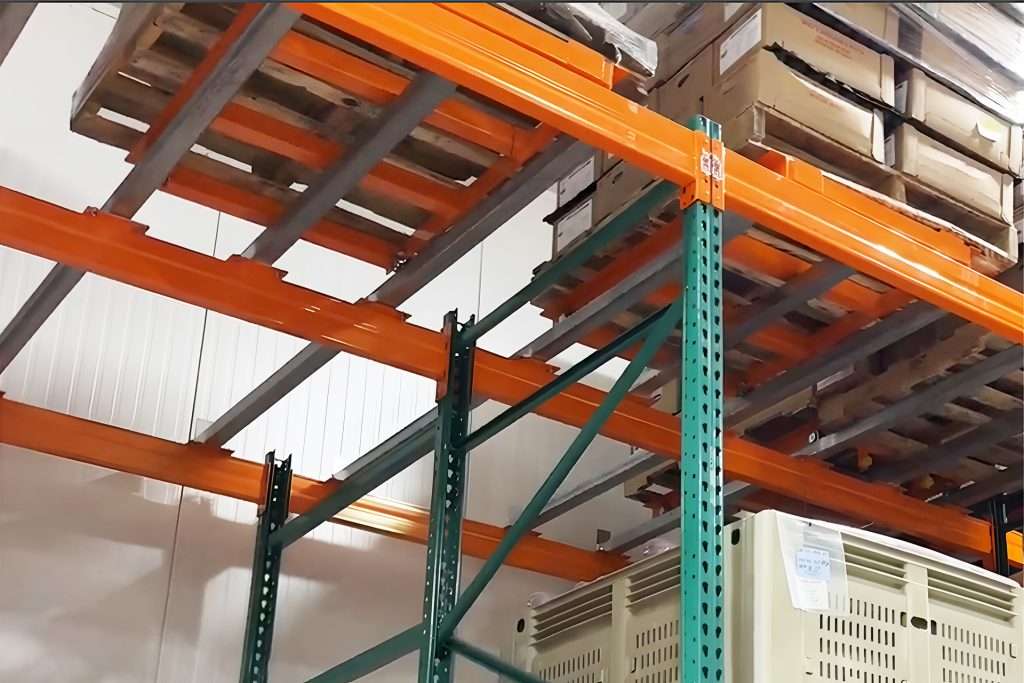

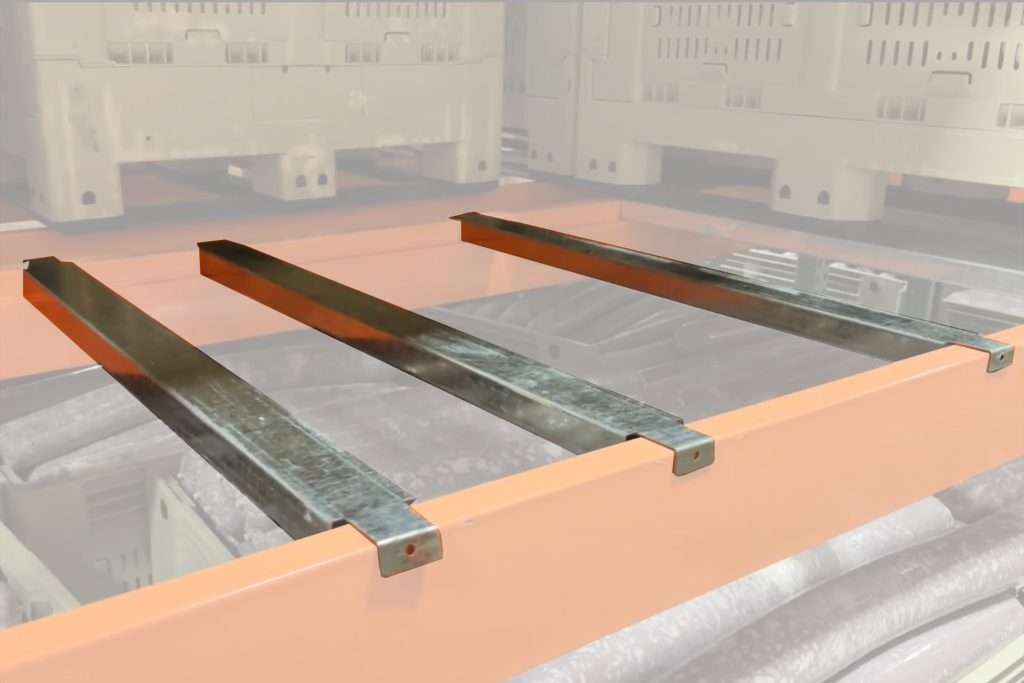

Pallet Rack Crossbar: Extra Backbone for Heavy Hitters

When your racks hold heavy loads, pallet support bars keep that weight from bending your beams. They bridge across the rack and sit right under the pallets, spreading the weight evenly.

• Prevents beam overload: Each pair holds up to 2,000 lbs to stop beam sag and deck damage.
• Quick install, no downtime: Flanged on both ends to rest securely on beams. Click them in within minutes, and reuse them later if your layout changes.

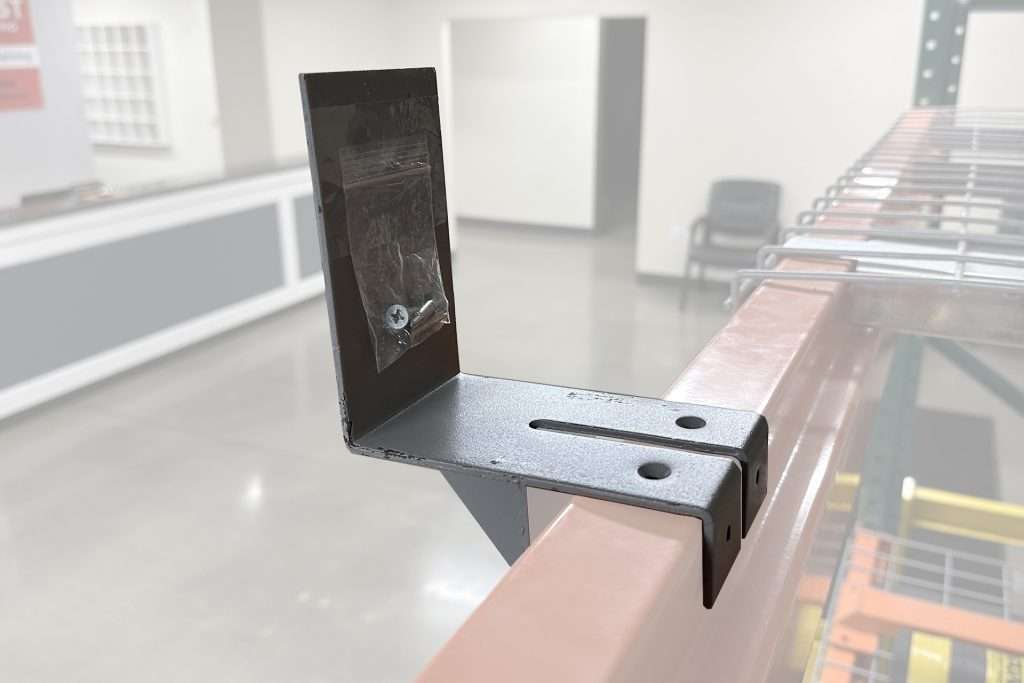

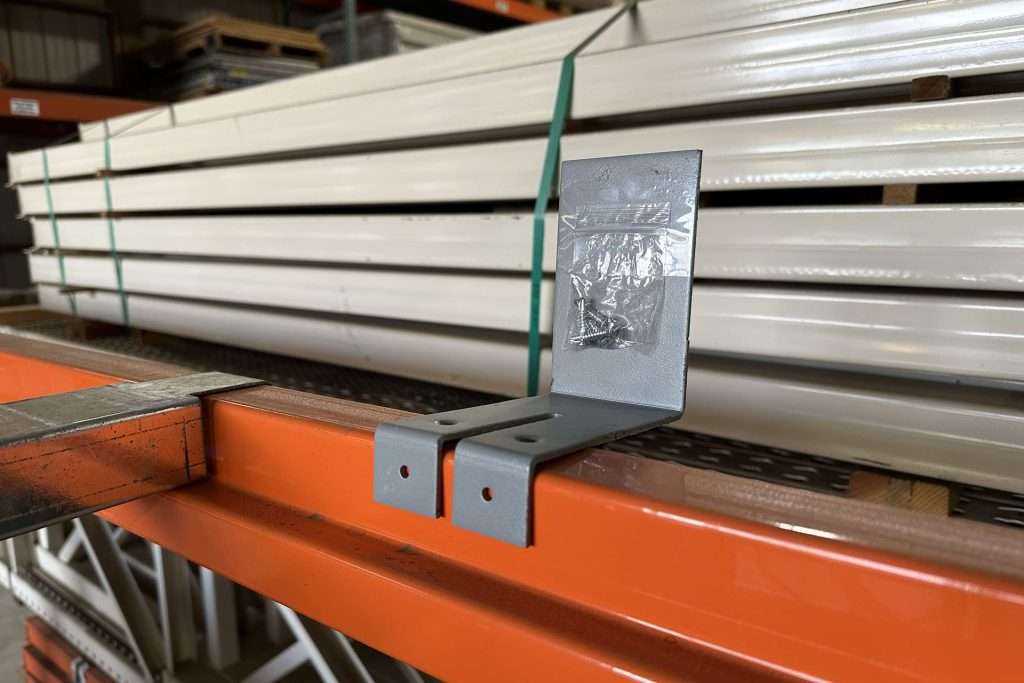

Flue Guards: Keep Fire Paths Clear

Overloaded flue spaces turn small fires into big problems — blocked airflow means sprinklers can’t do their job. Flue guards fit between pallets on the same beam, forcing proper spacing. Our patented design uses heavy-duty wire with pre-punched holes and includes Tek screws. Choose 12″ for a 6″ flue space, 18″ for 12″, or 24″ for 18″.

• Meets codes head-on: Complies with NFPA 13 and IBC 2012 by holding the gap open, no matter how many pallets per level.
• Fits wire decks easily: Clearance slots slide over 2-gauge mesh without snags.
• One per flue space: Use two per two-pallet beam — installs in seconds to cut fire spread risk right where it starts.

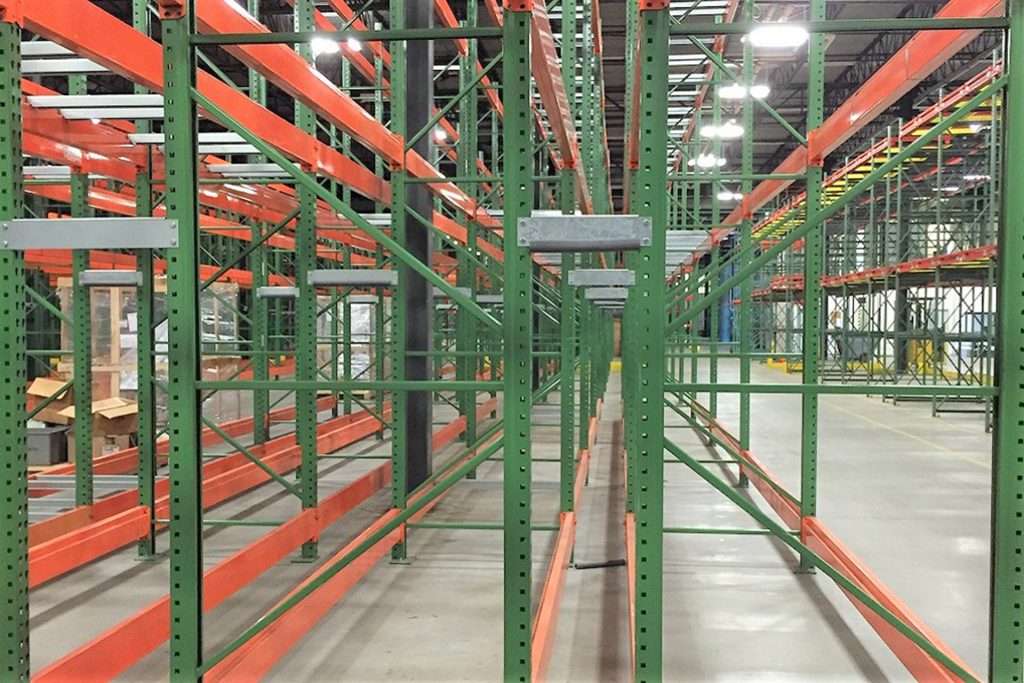

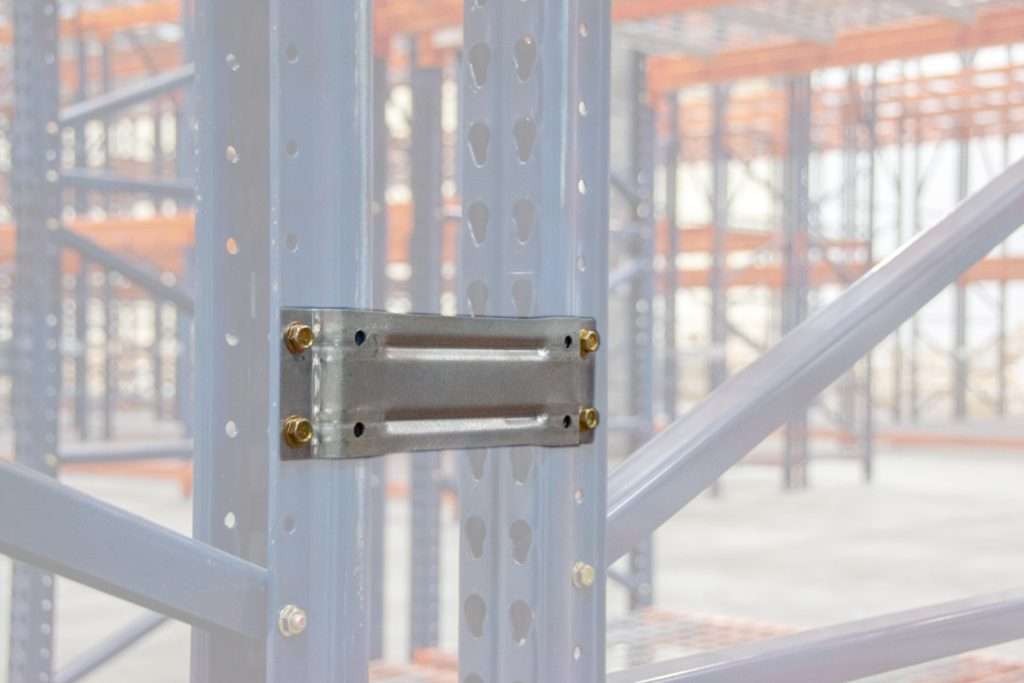

Row Spacers: Keep Rows Straight and Spaced

Crowded back-to-back racks rub and bend over time, or worse, block those code-required flue spaces. Row spacers are 14-gauge steel bars that bolt between uprights to hold even gaps — 8″ up to 48″ long.

• Locks alignment: ties both rows together so they act as one solid unit and keeps flues open for sprinkler coverage.
• Bolt and done: Hardware included, place them just above the bottom strut and below the top — galvanized or colored to match your setup.
• Prevents side-swipes: Extends rack life in dense layouts.

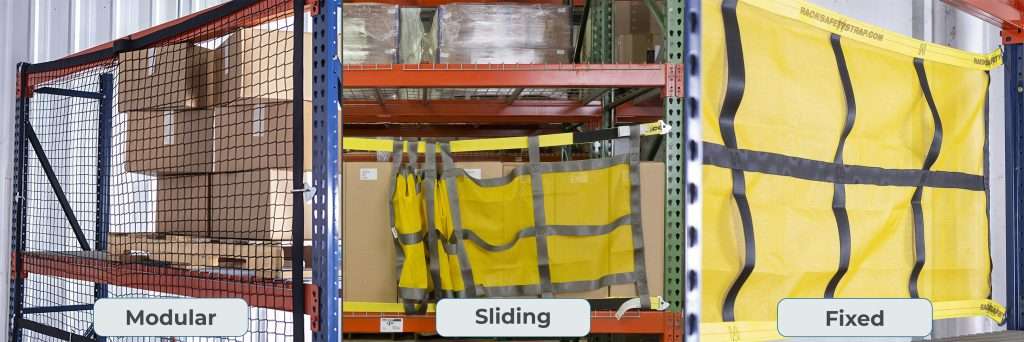

Safety Netting: Catch Falls Before They Hit

That same forklift mishap could’ve ended differently if safety netting was in place. Hang it behind or under racks, and it’ll catch anything that slips before it hits the ground. Made from seatbelt-grade polyester webbing, it clips on fast. We offer fixed, sliding, and modular styles to fit your setup — from quick-access pick zones to permanent barriers.

• Stops falling hazards: Stops falling hazards: Strap rated for a 2,400-lb working load; seatbelt webbing break strength ~ 6,000 lbs; cargo webbing ~ 10,000 lbs. System performance depends on frame/anchor spacing. It’s plenty to stop a shifting load from falling 10 feet.
• Saves on claims: One net can prevent thousands in damage, and it’s easy to inspect and swap out.

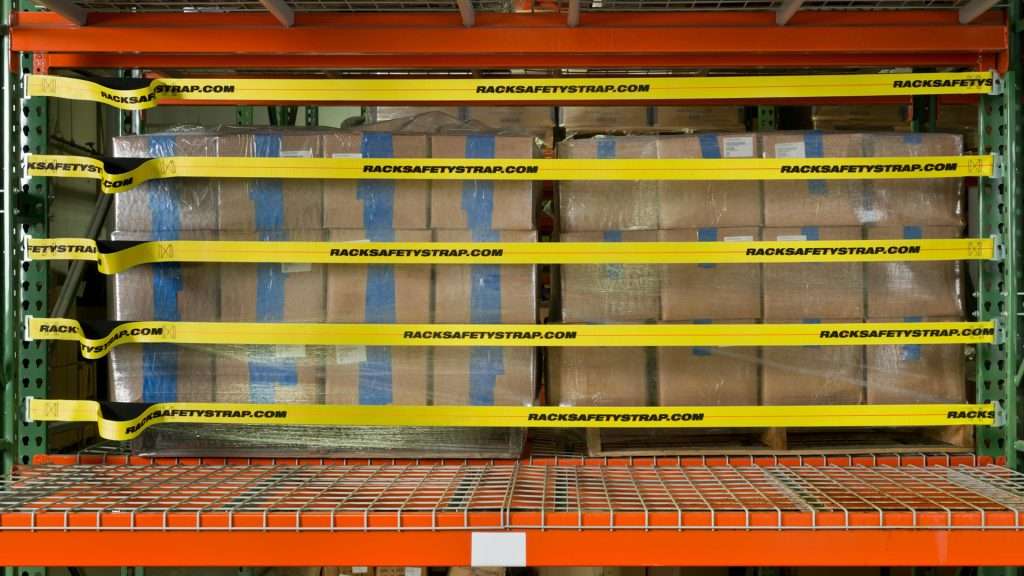

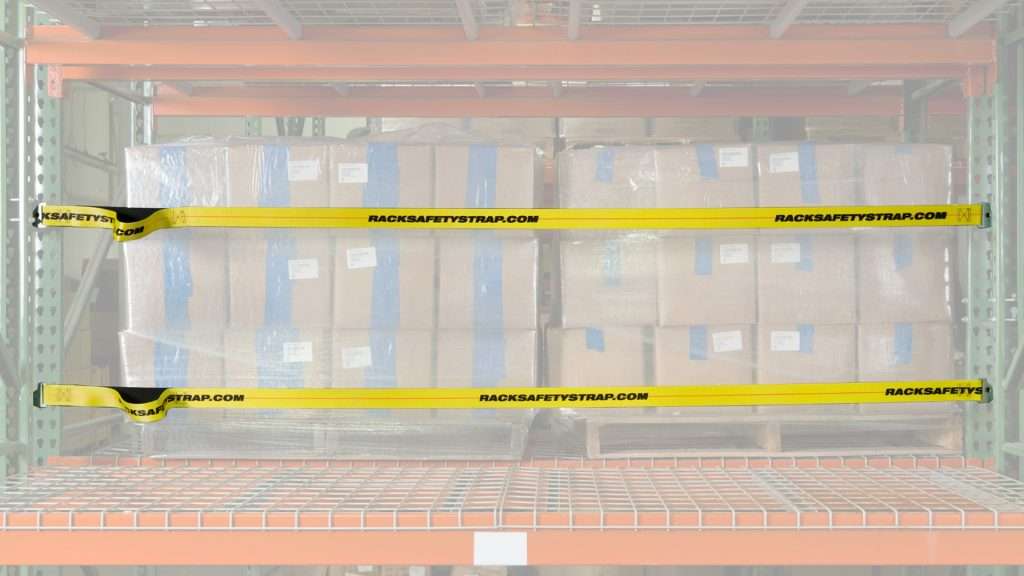

Safety Straps: Tie Down Shifting Pallets

Even on steady decks, vibrations from trucks or forks make loads creep. Safety straps — 2″ polyester with elastic stretch — buckle across pallets to hold them firm, rated 2,400 lbs burst strength.

• Absorbs the shake: Available in different lengths to fit racks from 96″ to 156″. Each strap is reusable (unlike plastic bands) and gentler on boxes than chains.
• Quick wrap: No tools, just ratchet tight — releases fast for unloading, cuts tip-overs in high-movement zones.
• Rack-compatible: Teardrop clips hook right on, keeps everything from shifting back into those flue guards.

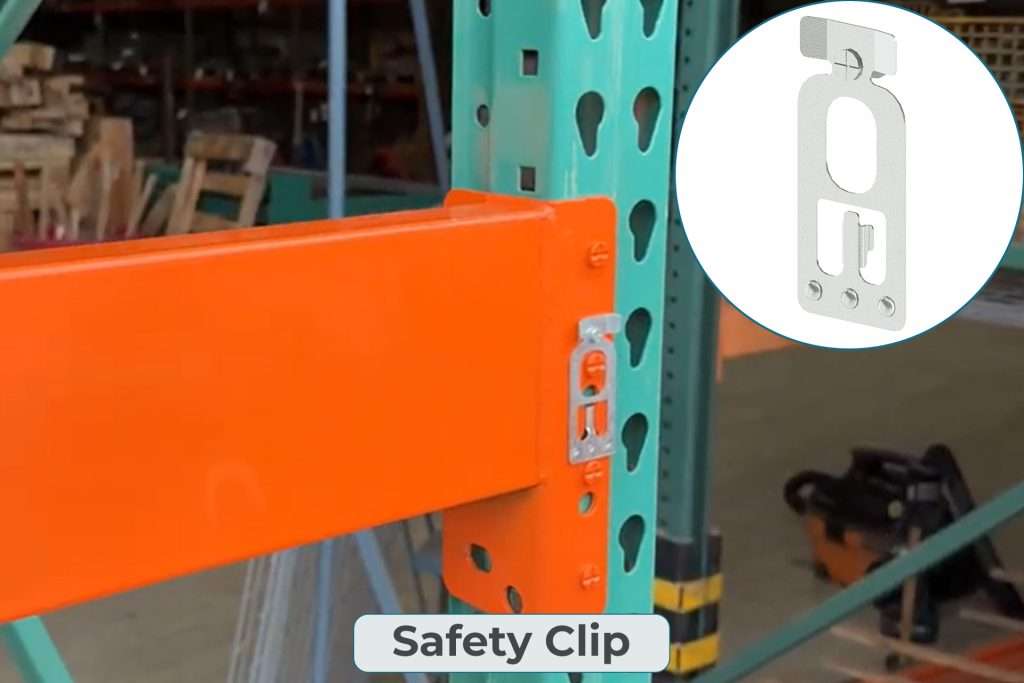

Safety Clips and Drop Pins: Lock Beams Tight

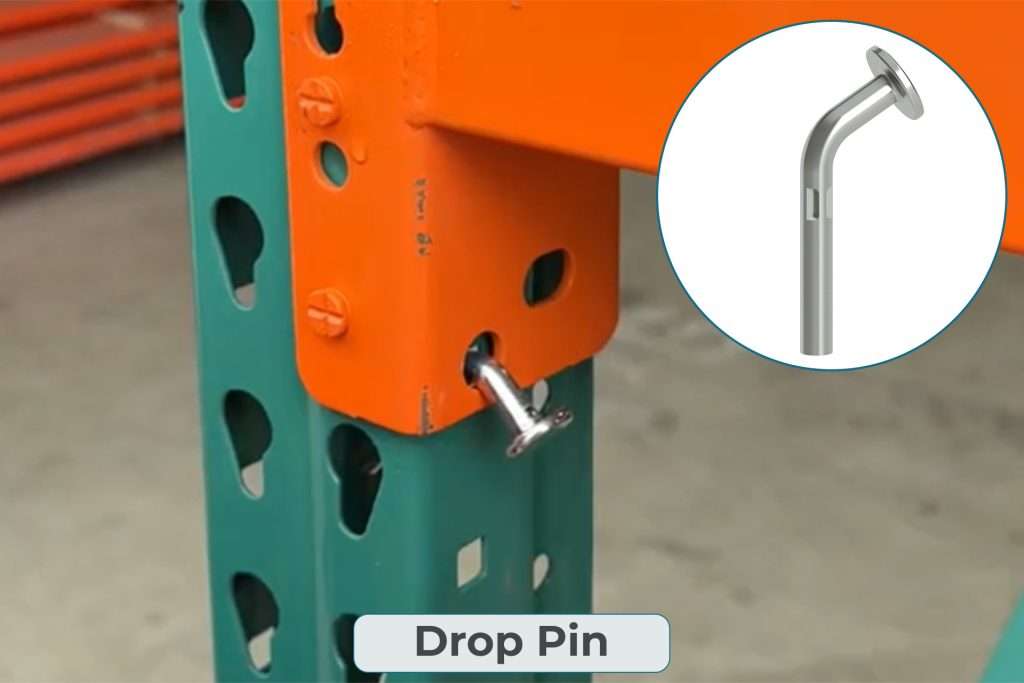

Loose beams are a silent killer — a high lift from the fork and the whole level drops. Safety clips snap on quick for everyday use. Pair them with drop pins for the real hold: these J-shaped pins drop through the beam endplate into the upright punch, locking everything solid.

• Backup that works: Clips cost under a buck but check them weekly. Drop pins show damage right away and take the heavy hits without breaking.
• No-fail combo: Use per manufacturer’s locking method; always install beam locks after beam height changes.
• Fits standard teardrop: Galvanized for rust resistance, they’re cheap insurance at $2 a pop.

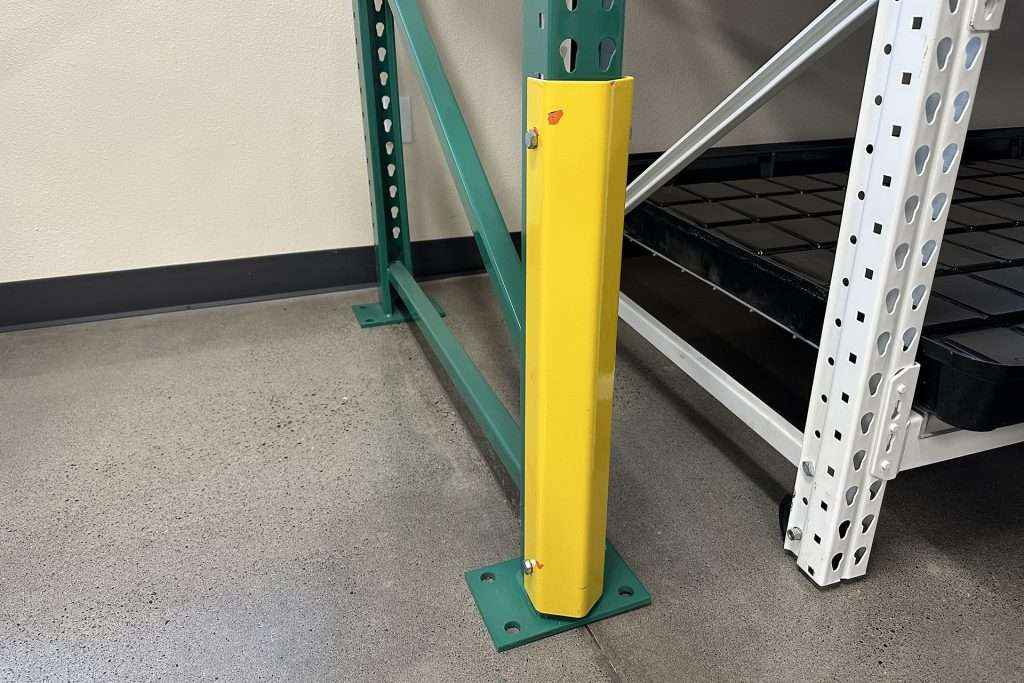

Column Protectors: Shield Racks from Forklift Bumps

Let’s be honest — forklifts bump things. About one in ten forklifts in the U.S. gets into an accident each year. If your facility has ten or more, odds are one’s hitting something soon. Most times, it’s a rack column.

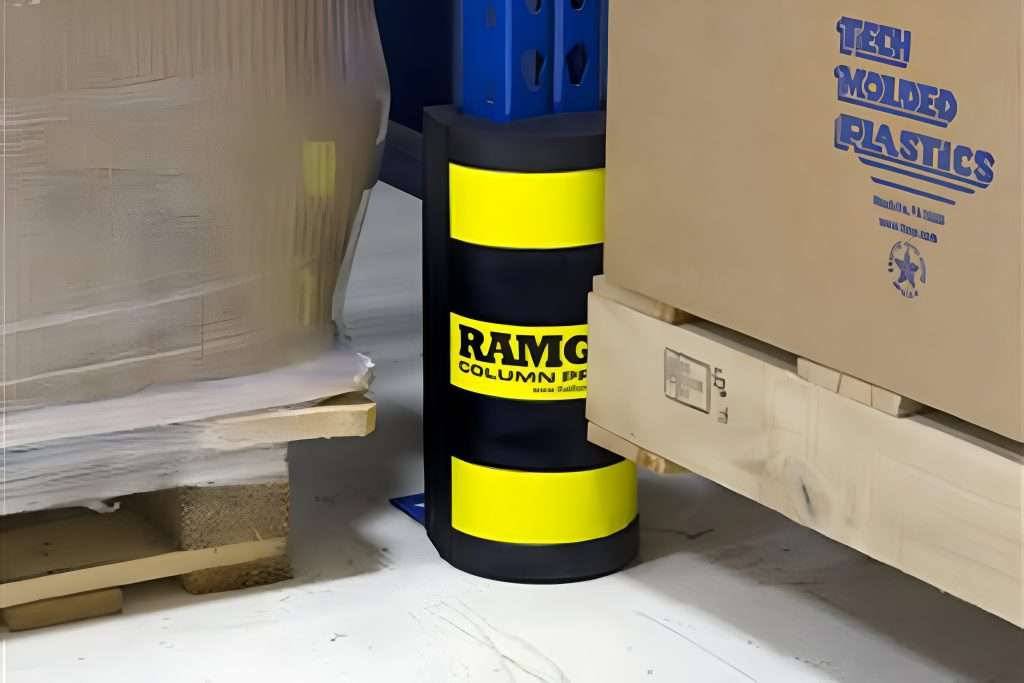

The fix: RAMGuard-style column protectors — energy-absorbing rubber-armored steel that takes the hit like a bumper.

• Takes the impact: RAMGuard’s U-shaped design with built-in energy voids absorbs forklift hits — tougher than plastic guards and built to handle everyday warehouse collisions without bending.
• Stackable height options: Bolt on 12–24″ sections up the post, and they’re bright yellow for visibility.
• Cuts repair time and cost: Replace in under an hour instead of welding a bent upright.

In that forklift example, these guards would’ve absorbed the blow long before the decking ever got hit.

To spot potential issues early, check out our guide on 8 Common Signs of Pallet Rack Damage — it covers everything from bent beams to loose anchors.

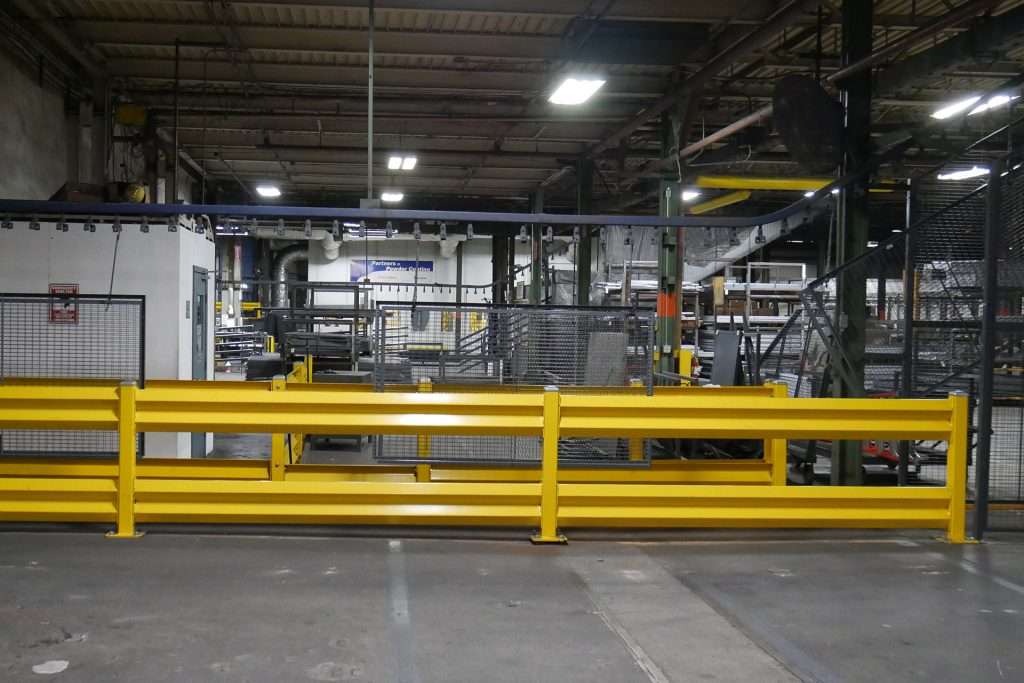

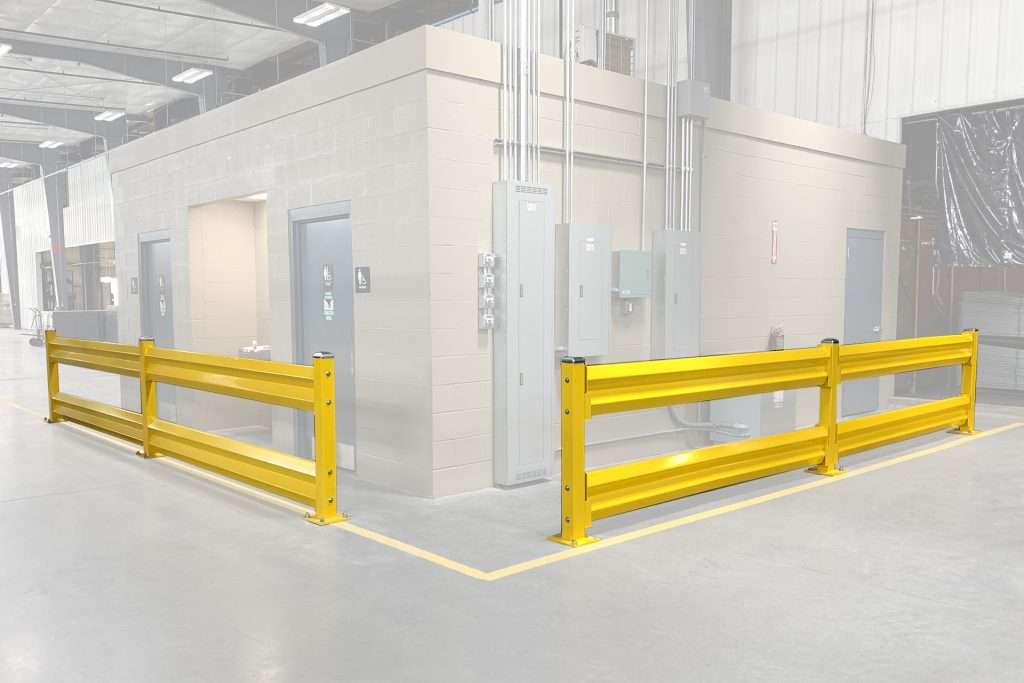

Guard Rails: Broaden Your Protection

For wider aisles or conveyor zones, add guard rails to create clear barriers that stop forklifts in their tracks.

• Made from heavy-duty steel, they withstand major impacts while keeping traffic flowing safely.
• Rated for 10,000 lbs of force at 5 mph, they come in 3- to 9-foot lengths and install fast with the included hardware — perfect for busy aisles or conveyor zones.

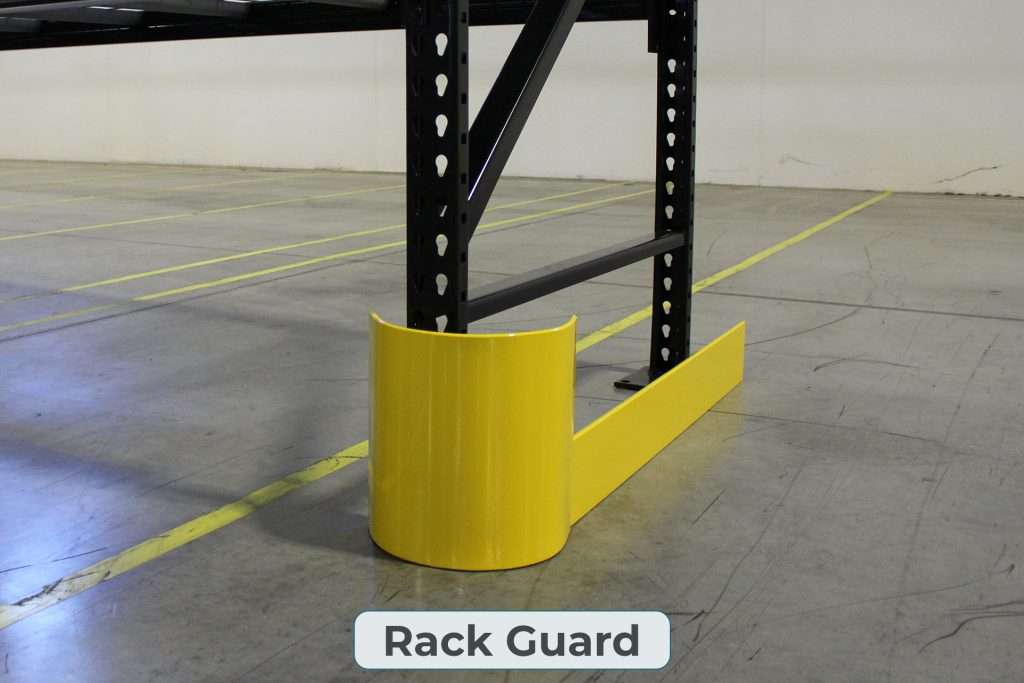

Rack Guards and Post Protectors: Guard the Base

Forklift hits usually start low. Rack guards bolt to the end frames, and post protectors wrap the base. Both are ¼” steel, powder-coated against rust, and come in 42″ and 48″ heights.

• Takes direct hits: Built for impact protection — absorbs collisions from pallet jacks and forklift forks to shield the racking.
• Easy bolt-on setup: Includes mounting hardware like 3/8″ x 4″ screw anchors for secure installation.
• OSHA-compliant yellow: Stands out even in dim aisles, giving drivers a visual cue.

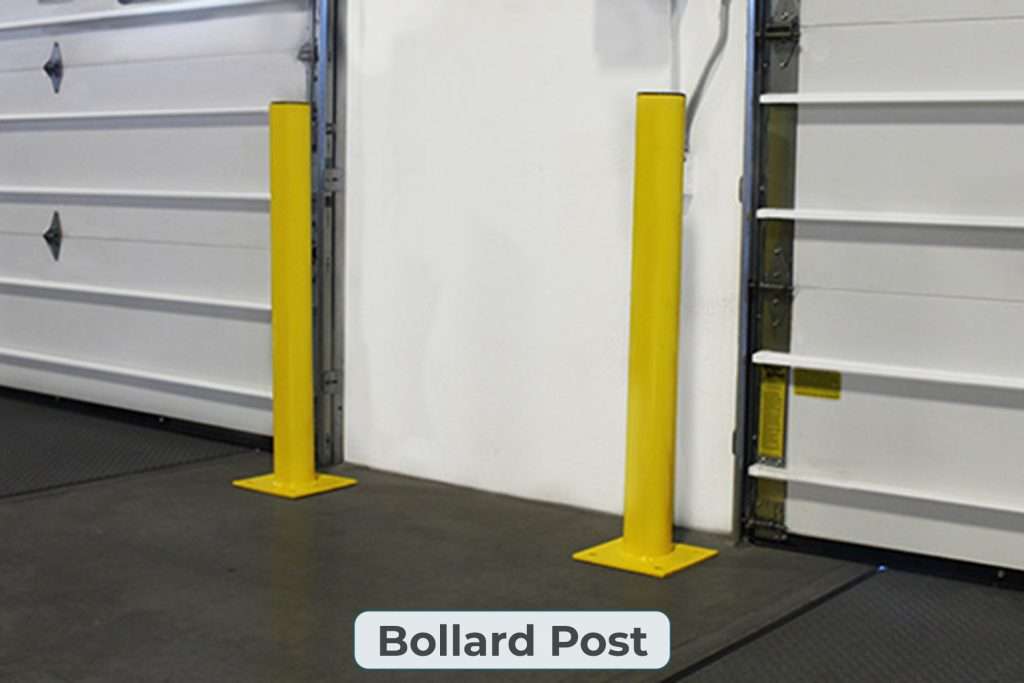

Pair these with bollards near your dock. Our heavy-duty steel bollards, with a 6-inch diameter and 40-inch height, handle vehicle impacts.

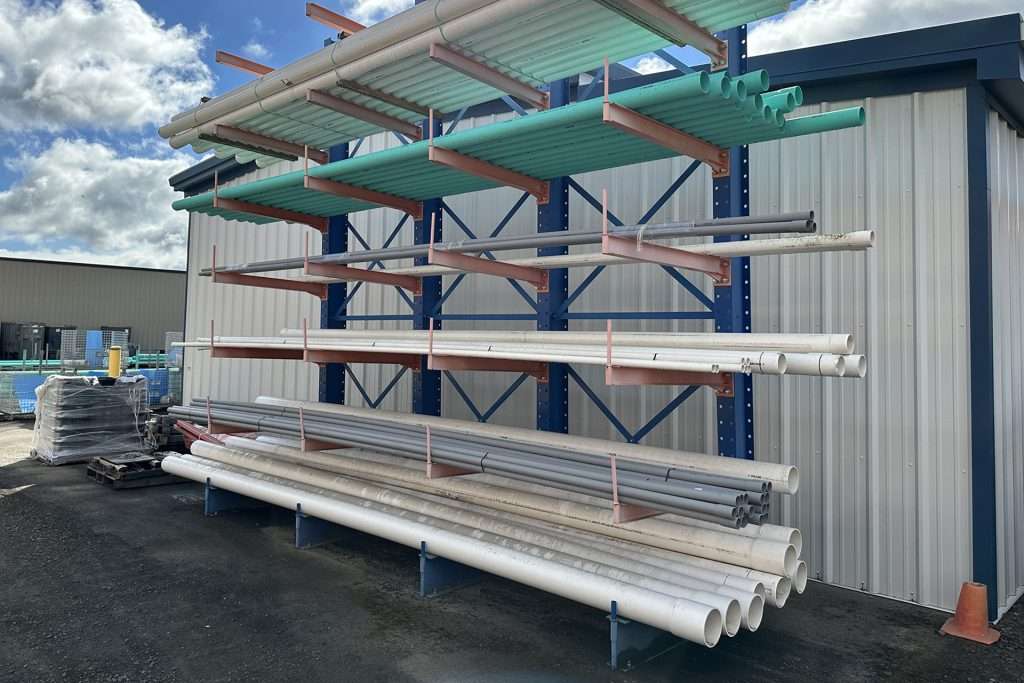

Cantilever Stop Pins: Hold Long Loads in Place

If you’re running cantilever racks for pipes or lumber, round stuff rolls right off the arms during a pull or bump. Stop pins slide into the arm ends — 1″ steel tubes that stick up 10″ to block the slide.

• Stops the roll: Drop-in fit for 1.25″ receptacles, easy pull-out when you need access, but they catch anything trying to tip over the edge.
• No more floor hunts: Keeps long, slippery loads from rolling off 13″-high arms, cutting damage, and trip hazards.
• Simple add-on: One per arm or base — takes seconds, weighs next to nothing.

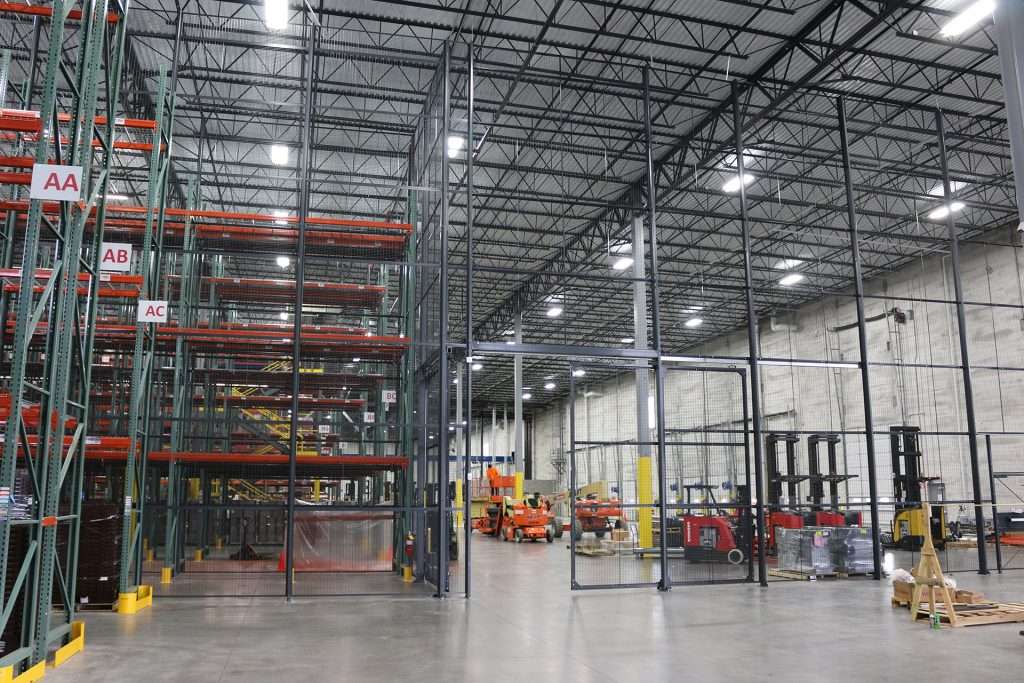

Wire Mesh Cages: Lock Down High-Value Stuff

For tools, chemicals, or pricey parts, open racks invite grabs or spills. Wire mesh cages form a full enclosure — each one built from heavy steel wire, 8′ 5-1/4″ tall and tough to cut through.

• Controls who gets in: Each has a 3′ x 7′ door, with standard 8′ x 4′ panels up to 20′ x 6′. The gray enamel finish stands up for years.
• Secures the sensitive: Keeps hazardous gear contained, adds time if someone’s trying to break in — pair with a camera for full watch.
• Factory-floor ready: Bolts together fast, custom sizes if your spot’s odd, protects without eating floor space.

Load Capacity Labels: Remind Everyone of the Limit

Overloads start with “just this once.” Slap load capacity labels on every beam at eye level — shows max lbs clear as day, from 2,500 up to 6,500.

• Code must-have: Meets ANSI MH16.1 and OSHA requirements. The adhesive backing sticks even through dust and bumps.
• No guesswork: Barcode-ready for scans — update ’em if you re-beam.
• Cheap heads-up: Prevents that one extra pallet from bending everything, keeps inspections smooth.

Quick Comparison: Pick the Right Accessory for Your Rack

Wrap-Up: Gear Up Your Racks Today

From that first forklift bump to full-on rack collapse, every one of these accessories is built to stop it before it starts.
Wire mesh decks hold steady. Pallet supports carry the weight. Safety nets catch what slips. Guards take the hits.

Keep your crew safe, your racks solid, and your orders moving.

Fast. Easy. Right.
