The flanged design rests on beams
Pallet Rack Crossbars
Pallet Rack Crossbars
In Stock
from $10.99 ea
Key Features
-
Available in 24″, 36″, 42″, 44″, 48″ and 60″ depths
-
Galvanized steel
-
Up to 2,000 lbs capacity per pair
-
Delivery Terms
-
Ships Out Quick
1-2 days for most orders
1-2 days for most orders
-
Fast Shipping
1-3 days, great rates!
1-3 days, great rates!
-
Free Local Pickup
1-2 days in 97133
1-2 days in 97133
Delivery Terms
-
Ships Out Quick
1-2 days for most orders
1-2 days for most orders
-
Fast Shipping
1-3 days, great rates!
1-3 days, great rates!
-
Free Local Pickup
1-2 days in 97133
1-2 days in 97133
Key Features
-
Available in 24″, 36″, 42″, 44″, 48″ and 60″ depths
-
Galvanized steel
-
Up to 2,000 lbs capacity per pair
-
The flanged design rests on beams
Description

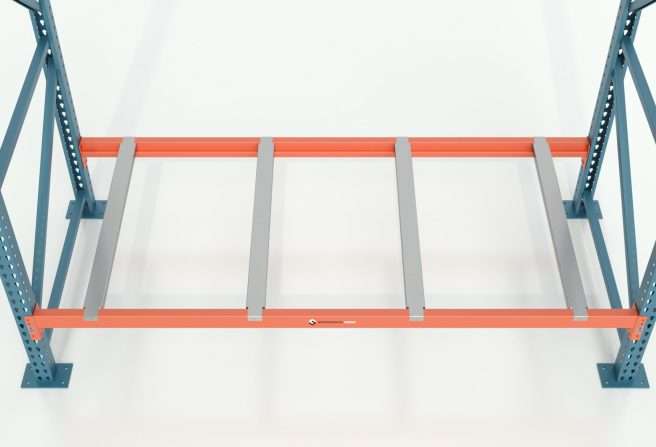

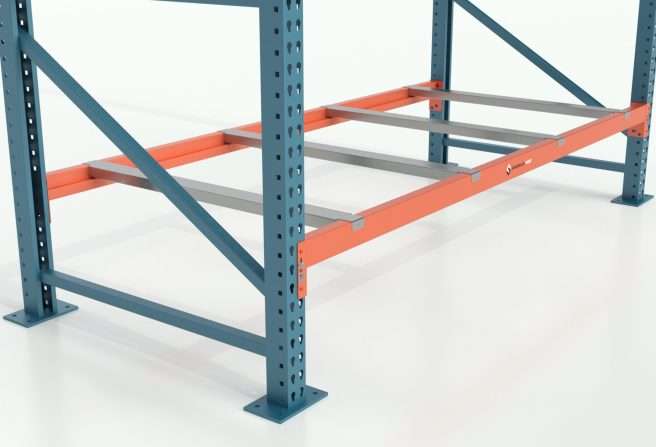

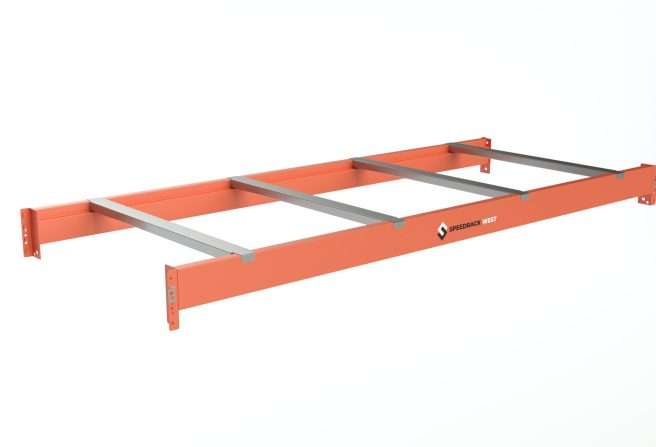

Pallet rack cross bars or pallet supports are sometimes called crossbars or pallet support bars. While the pallet rack beams are what truly hold the weight of a pallet, adding pallet supports increases the safety of the system.
Pallet rack cross bars are a less expensive option than wire mesh decking, and are used when only pallets are stored on the racking.

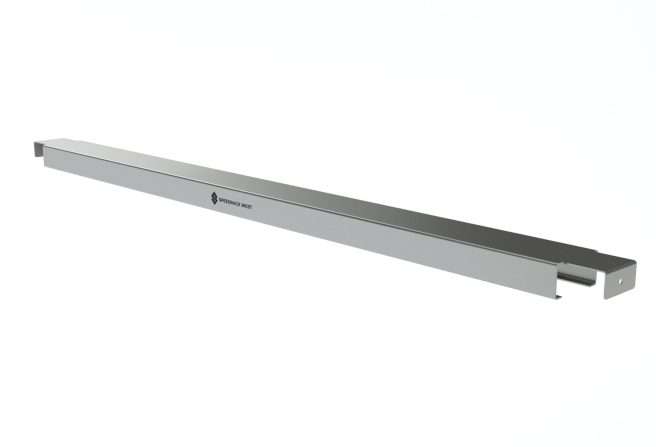

- Flanged on both ends to rest securely on beams
- Screw hole in each flange allows for tek screw to prevent movement
- Galvanized steel is resistant to corrosion
- Open bottom design prevents water accumulation to comply with fire safety codes
Do I Need Pallet Supports?
It is wise to have either pallet supports or wire mesh deck in your pallet rack system. Without pallet supports or wire mesh deck, your pallets are only supported by the beams. This requires extreme care when loading the pallet on the rack. Improper loading could result in the pallet falling and cause severe injury or death. Adding pallet support bars increases the safety of your system. For additional safety, and to allow storage of boxes and other non-pallet items, we recommend wire mesh decking.

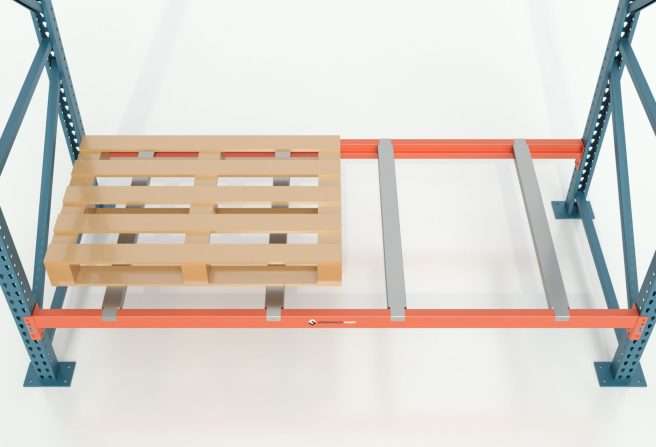

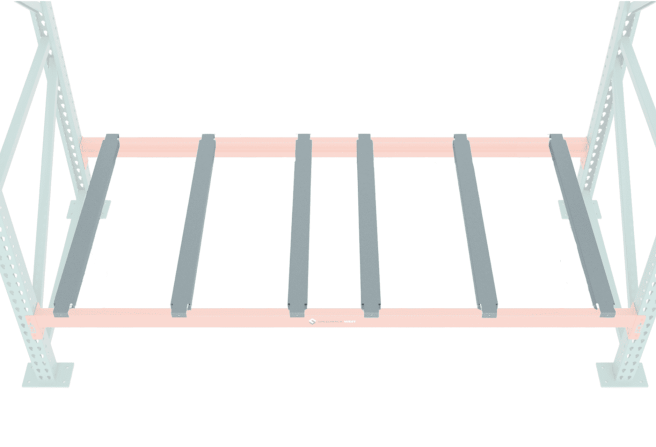

How Many Pallet Supports Should I Use?
We recommend at least two pallet supports per pallet position. An 8 ft wide rack level would hold two standard pallets. This would require at least 4 pallet supports per 8 ft beam level. A 12 ft beam level should have at least 6 pallet supports. Heavy loads may need 3 or more pallet supports per pallet.
Pallet Support Installation
Just place the support bars for pallet racks on your beams, and you’re done! For extra safety, prevent the pallet support from moving by adding a tek screw into the hole on each flange.
Want to Make Sure It Fits?
503-640-5666
or
Specifications
-
Common lengths
36″, 42″, 44″, 48″ -
Width
3″ -
Height
1.5″ to fit on standard 1 5/8″ step beams -
Steel Thickness
14 gauge -
Capacity
2,000 lbs
