Cantilever Racks for GTS Interior Supply, Beaverton
05/23/2025
Request / Problem
Our client, GTS Interior Supply, needed a solution outside the warehouse to efficiently utilize their floor space and handle long loads.
Solution
Full-service cantilever racking systems include examining the request, selecting the right type, obtaining permits, and installation by our professional team. Let's now explore some of the stages.
05/23/2025
See the Project in Action
Project Completion Process
Understanding Requirements

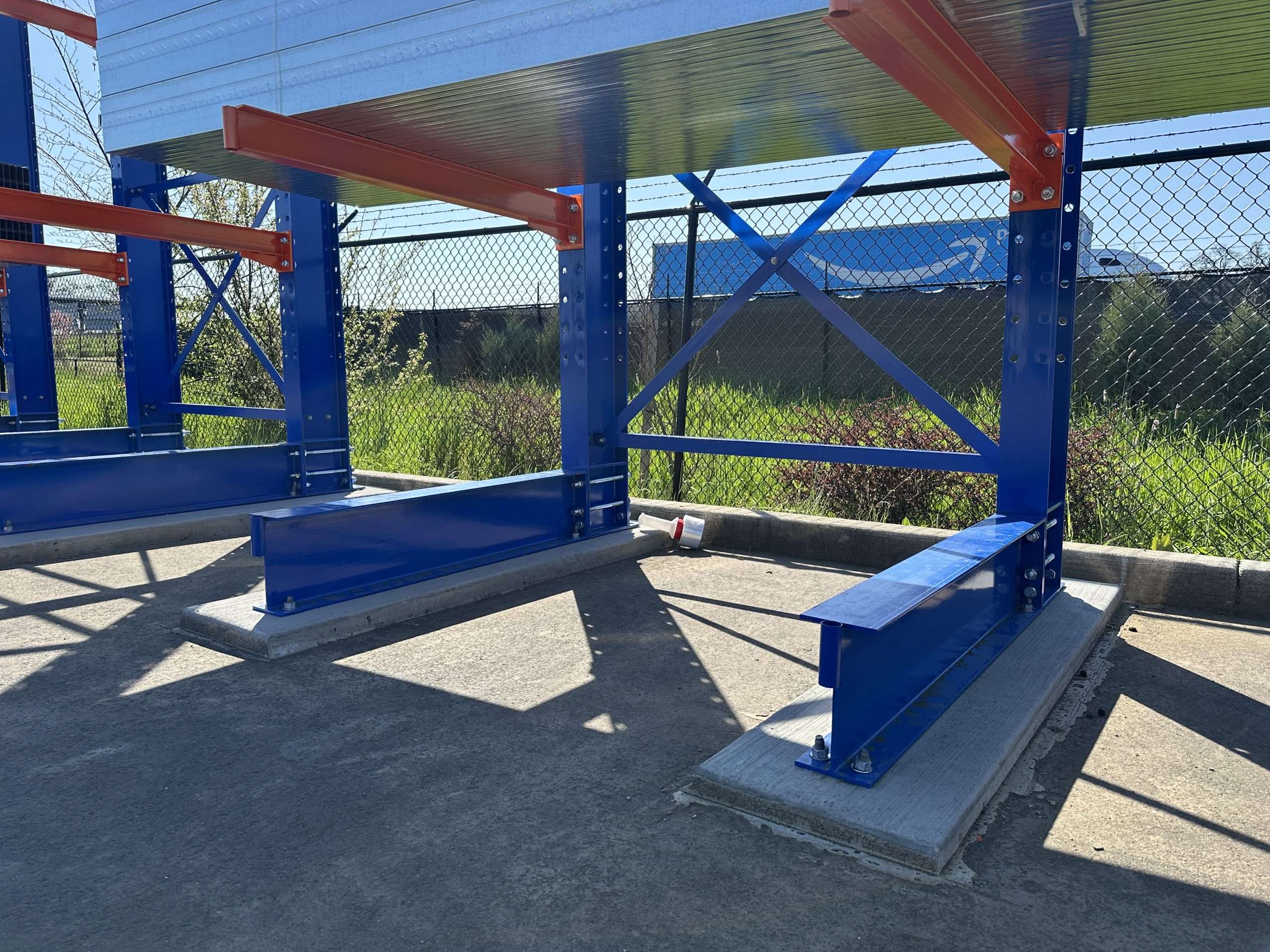

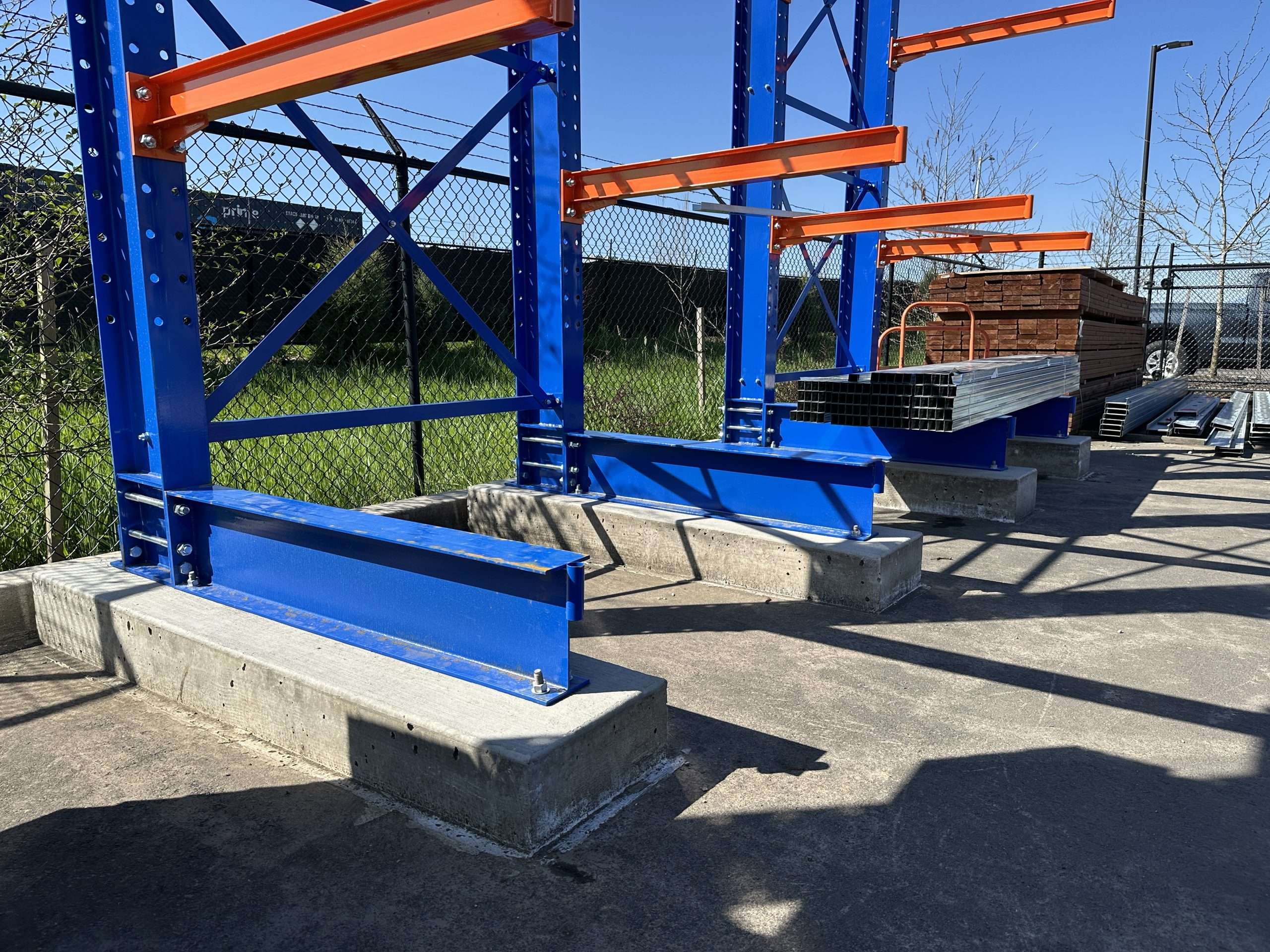

Before installation, we inspected the yard near the warehouse where the cantilever racks had to be installed. Initially, they were planned to be installed on a blacktop surface. However, installation without a concrete foundation was impossible because the racks’ weight with the loads was enormous. So, we had to have another company we worked with pour concrete foundations to anchor the cantilever. And that’s one of the services provided by our team if someone wants to put up a cantilever.
Choosing the Right Cantilever Racks
Cantilever racks come in various types based on load capacity:
- Super Heavy-duty Cantilever Racks: Handle extremely heavy loads of up to 20,000 pounds per arm.
- Heavy-duty Cantilever Racks: Support loads around 10,000 pounds per arm.
- Standard Duty Cantilever Racks: Have a capacity range of 1,500 to 4,000 pounds per arm.
- Medium Duty Cantilever Racks: Designed for lighter loads, such as aluminum sheets and drywall, with a capacity range of 500 to 1,500 pounds per arm.
For GTS Interior Supply, we installed structural cantilever racks with a capacity of 2,000 pounds per arm, ideal for their heavy loads.
Implementation

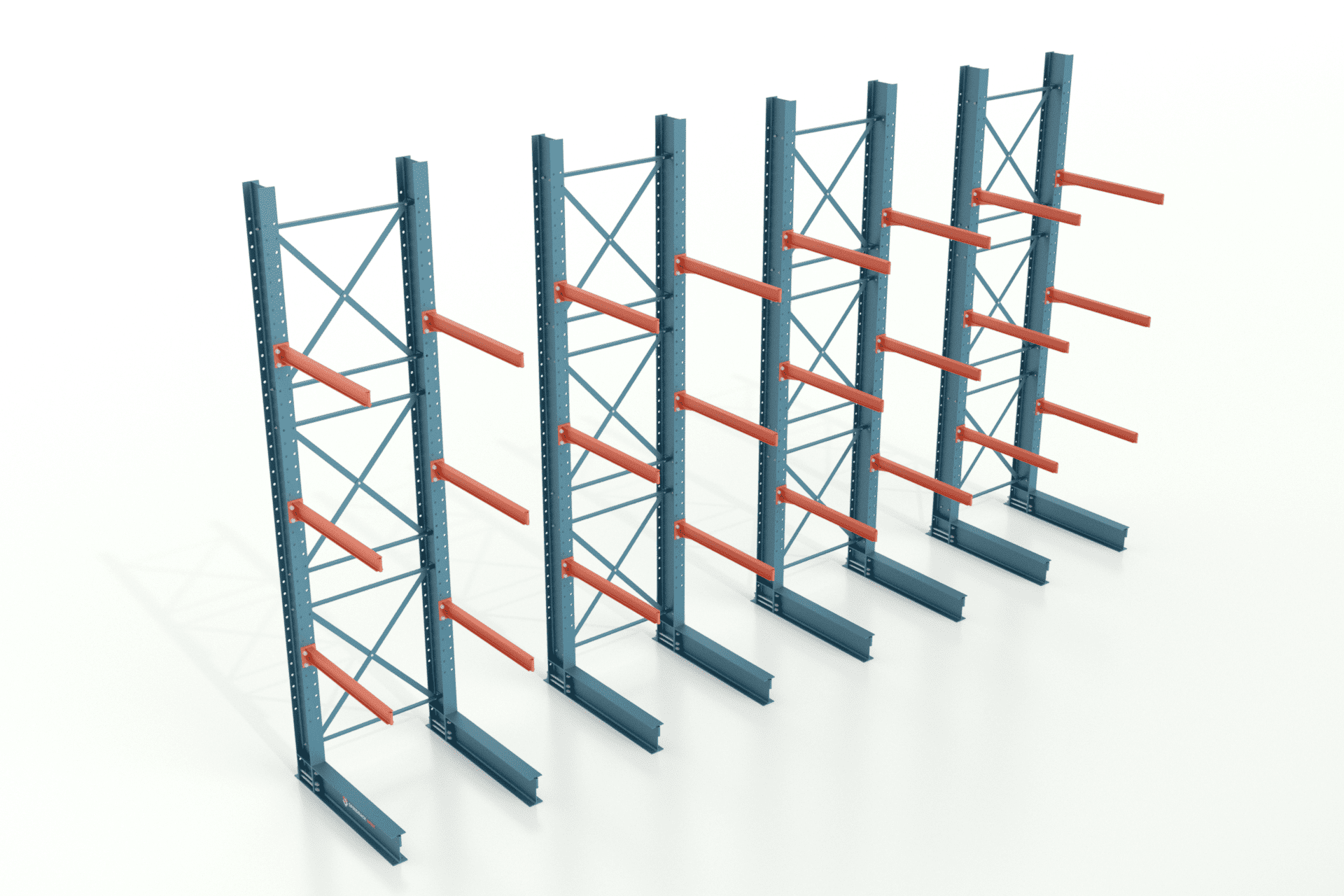

Cantilever racks are available: roll-formed and structural, single- and double-sided. Roll-formed racks are made from lighter-gauge steel and are suited for lighter loads, with easy assembly using boltless pin connectors. In contrast, structural racks, made from heavier-gauge steel through hot-rolling, offer greater flexibility and higher weight capacity. For GTS, we installed single-sided structural cantilever racks, 16 feet tall, with two arm levels. This setup provided the necessary strength for their heavy-duty storage needs.
Permitting and Installation
An essential part of the project was managing the permitting process.
Speedrack West offers an additional service of processing all the necessary permits. This ensures that the company can rest assured that the console system is installed securely and complies with all safety regulations.
By partnering with Speedrack West, the company saved time and resources while gaining a tailored storage solution that perfectly fits their needs.
-
Up to 50%
increase in storage capacity
-
30%
improve material handling efficiency
-
Up to 40%
reduce material damage and workplace accidents
Talk to a Storage Expert Today
or
The Main Problems that Speedrack West had Resolved
- Eliminated
the need to choose a company that will make the concrete base before installation
- Saved
our client's time and money
- Provided
full services: fixing the base, installation, permitting
- Increased
useful storage capacity
