Warehouse Stacking Racks

How Stacking Racks Work

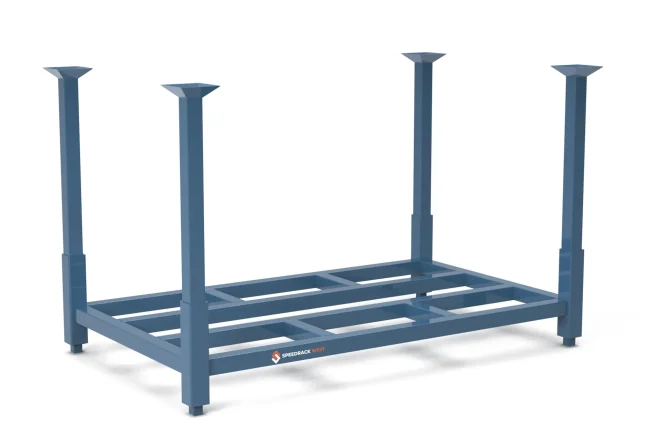

Each rack assembles using the base and four posts:

1. Posts slide into corner sockets,no tools required.
2. 4″×4” targets on top of each post align with the rack above.
3. 6″×6″ targets on the base align with the posts below.

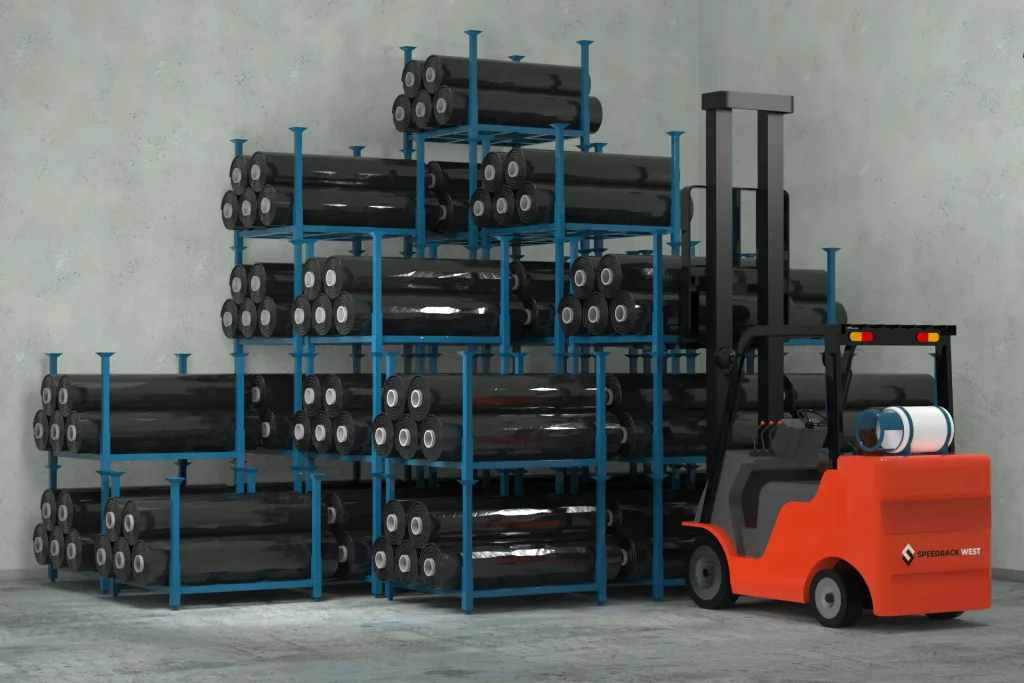

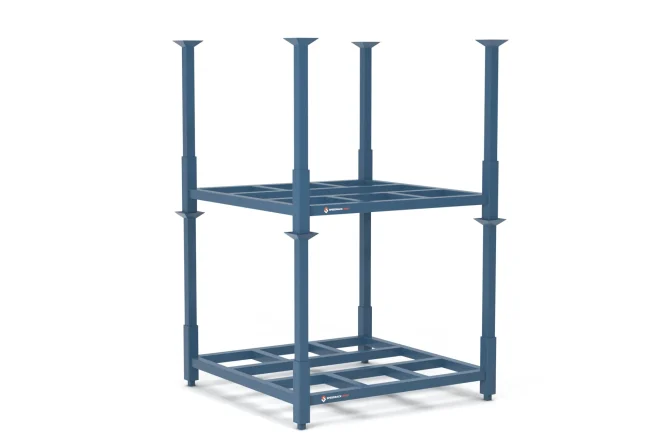

4. Fully assembled racks stack safely 3–5 high and can be lifted as one unit by a forklift.
5. When empty, bases nest together to save floor space during low-inventory periods.

This gives you pallet-ready, instantly reconfigurable storage without installing fixed rack systems.

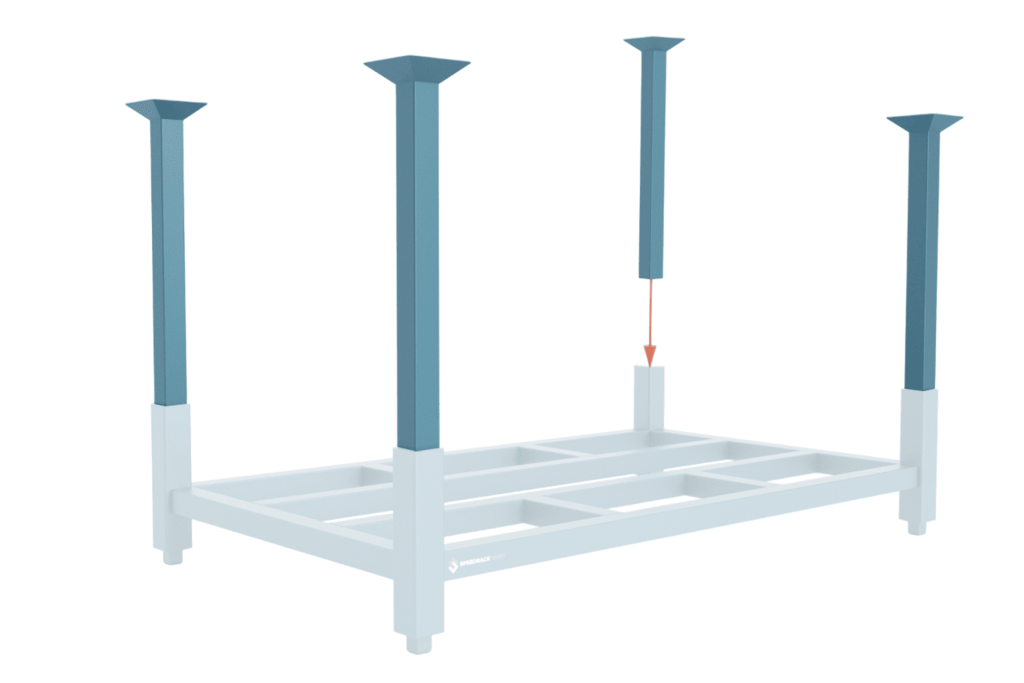

Stacking Rack Posts

Stacking rack posts are the vertical uprights that create usable storage height and enable racks to stack safely. Posts insert directly into the base’s corner sockets and include built-in stacking targets on top.

Available post heights allow you to match product height, forklift clearance, and stack level requirements. Each rack requires four posts of the same height.

Who Uses Stacking Racks

Stack racks are used across dozens of industries, especially when inventory is seasonal, bulky, or changes frequently.

Common use cases:

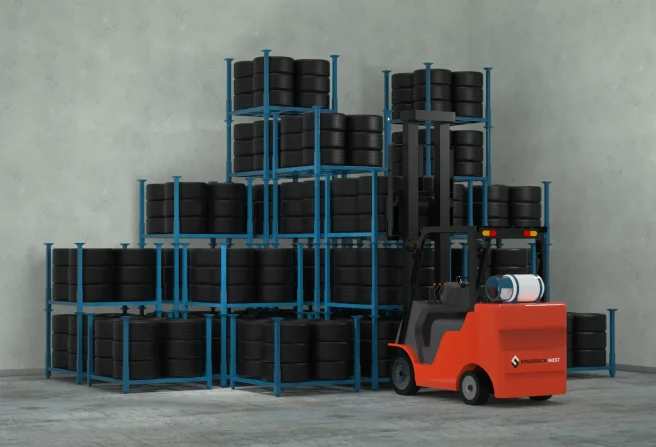

Automotive & Tires

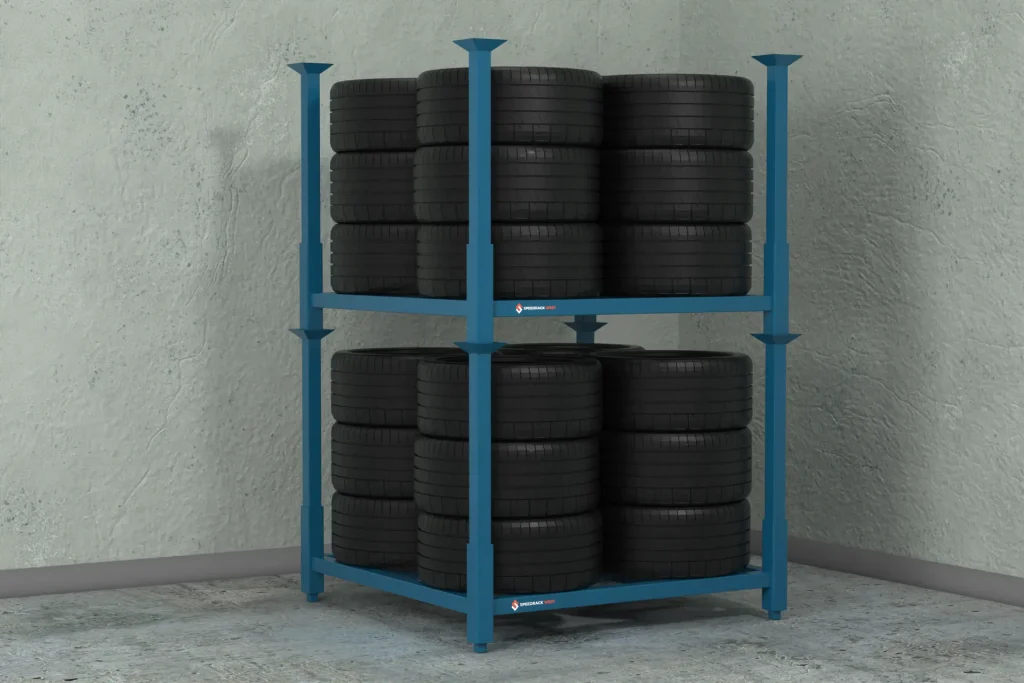

• Passenger, truck, and OTR tires
• Wheels & rims

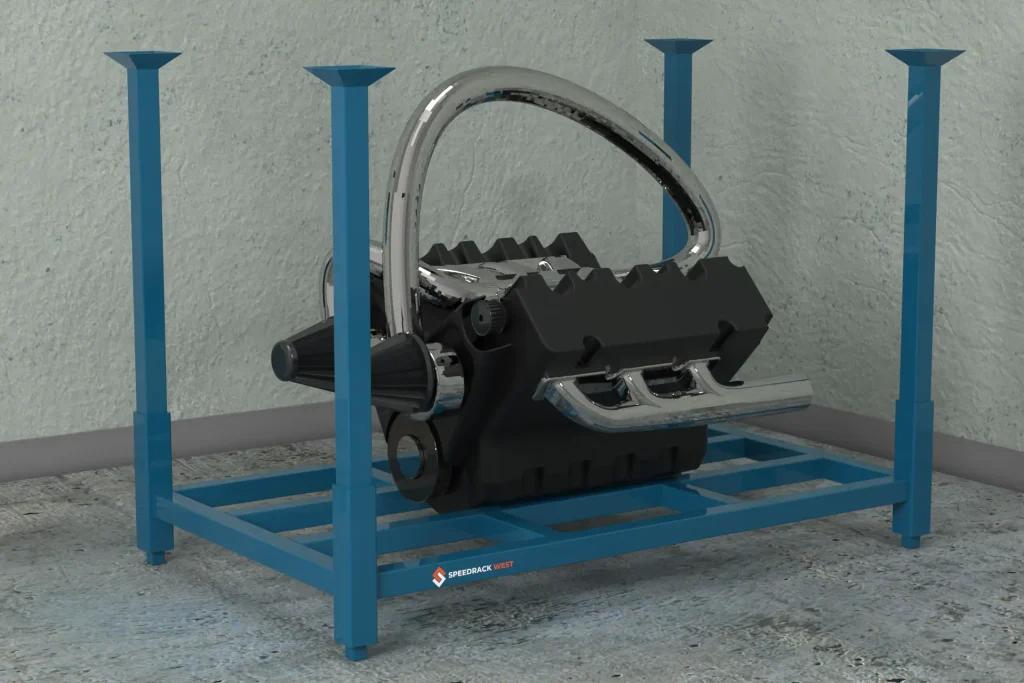

• Engines, transmissions, heavy parts
• (Stack racks are the industry standard for tire distribution.)

Manufacturing & Industrial

• WIP items, raw materials, subassemblies
• Heavy components that cannot be stacked on one another

Warehouse & 3PL

• Seasonal peaks
• Overflow SKUs

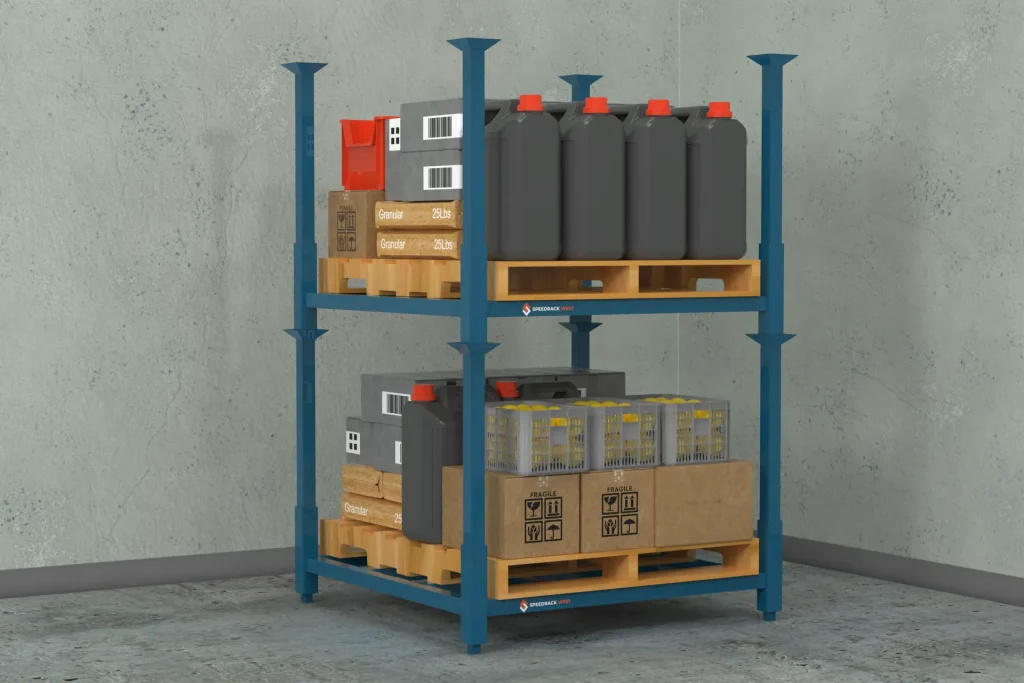

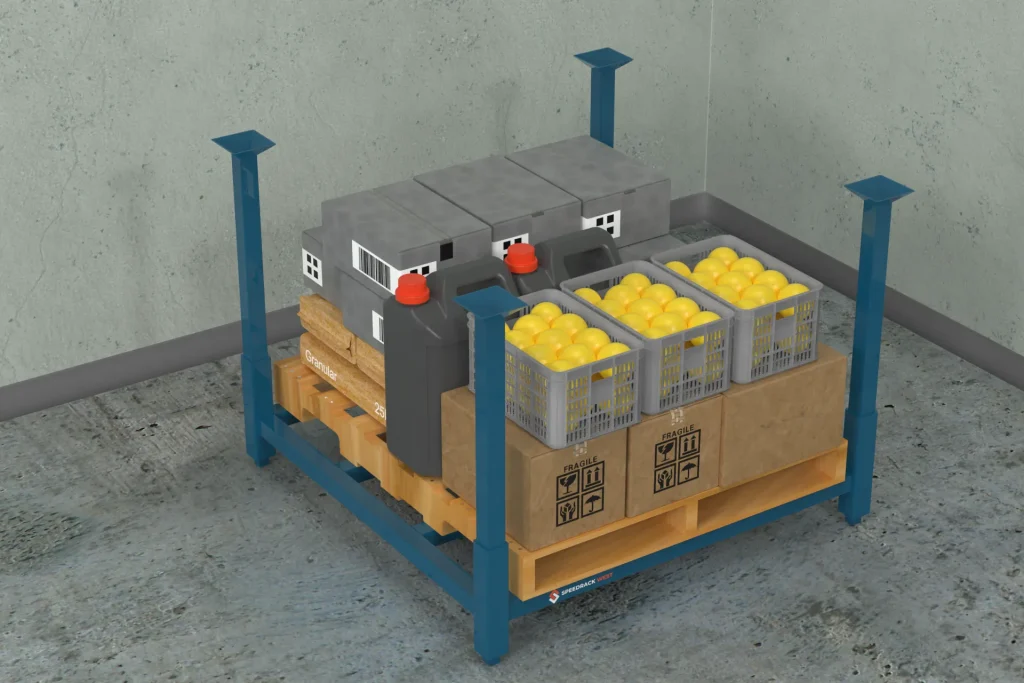

• Mixed pallets and low-volume items
• Floor-stacked goods that need vertical density

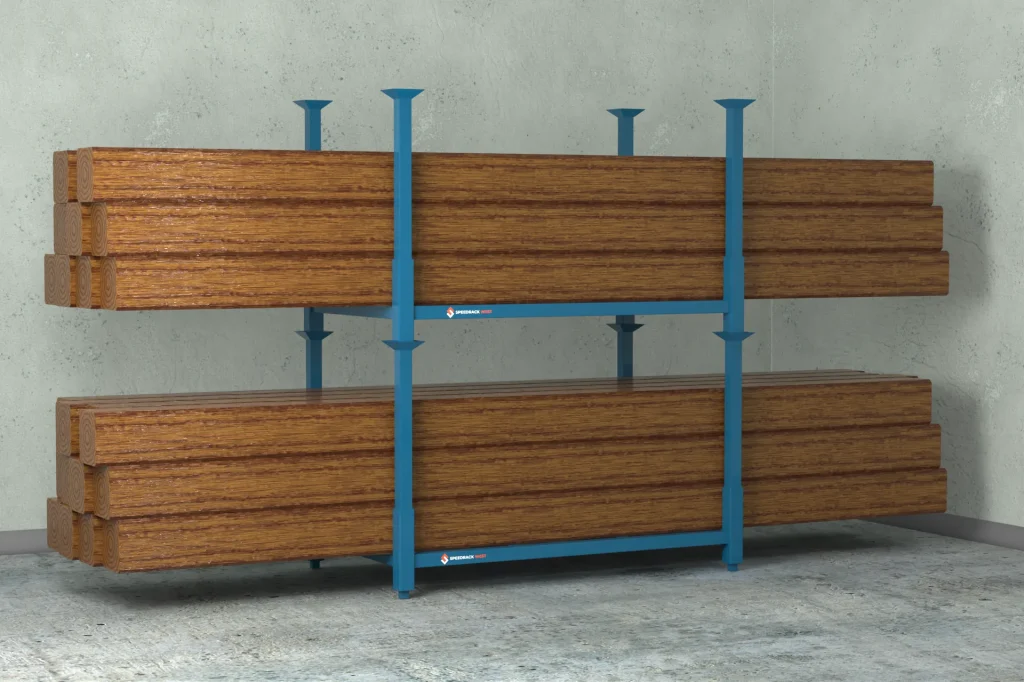

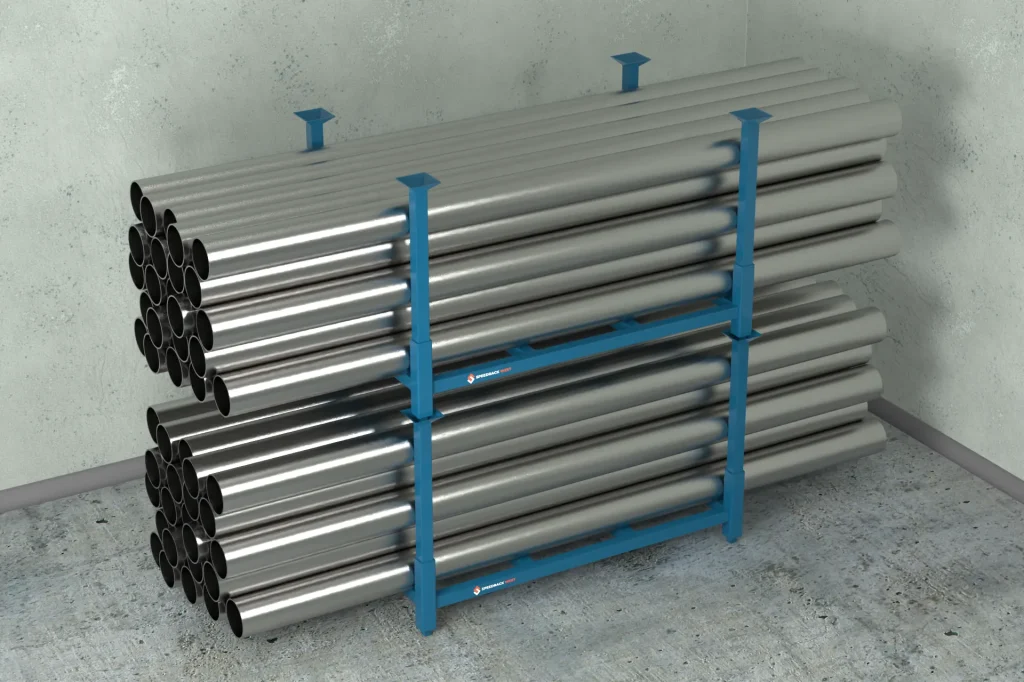

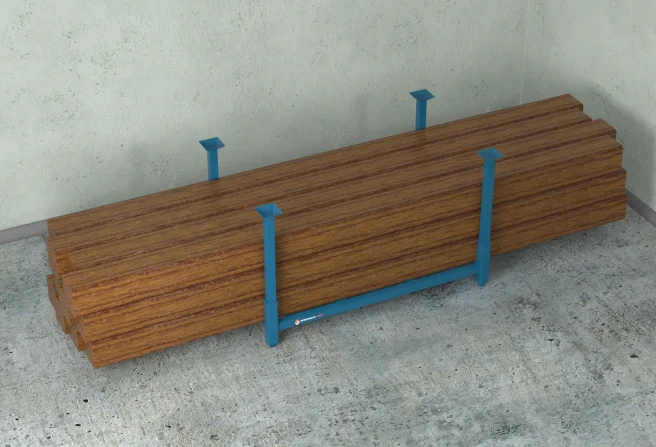

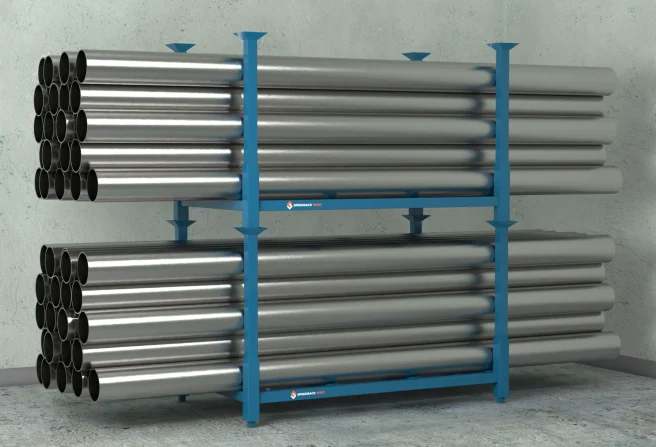

Pipe, Lumber & Long Materials

• When cantilever racking is too expensive or inflexible
• Bundles of pipe, tubing, lumber, bar stock

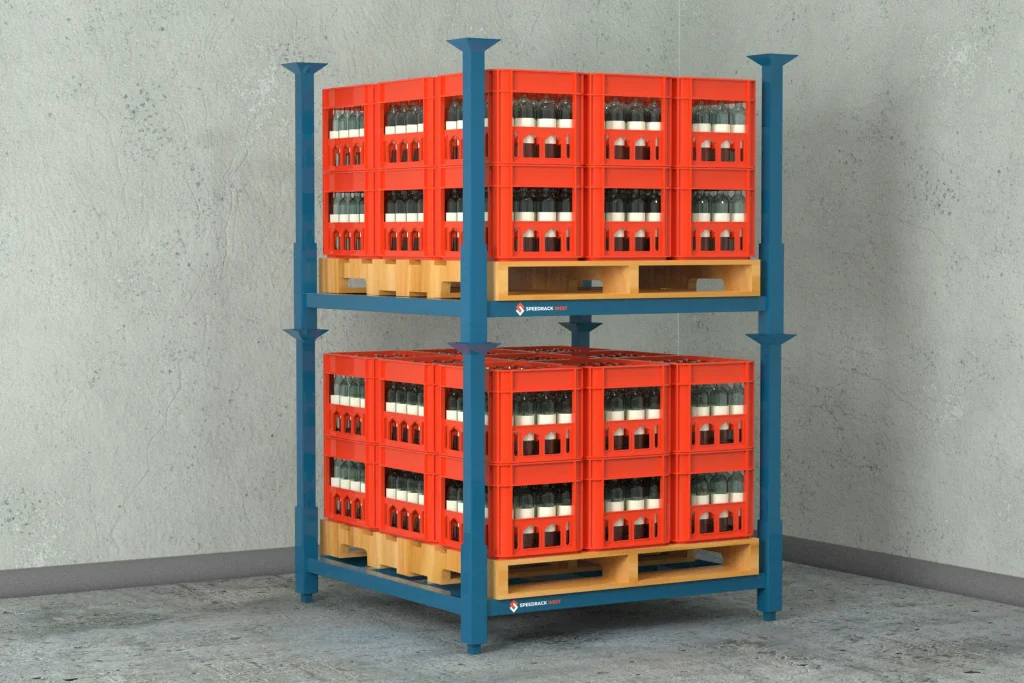

Beverage, Bottling, Food

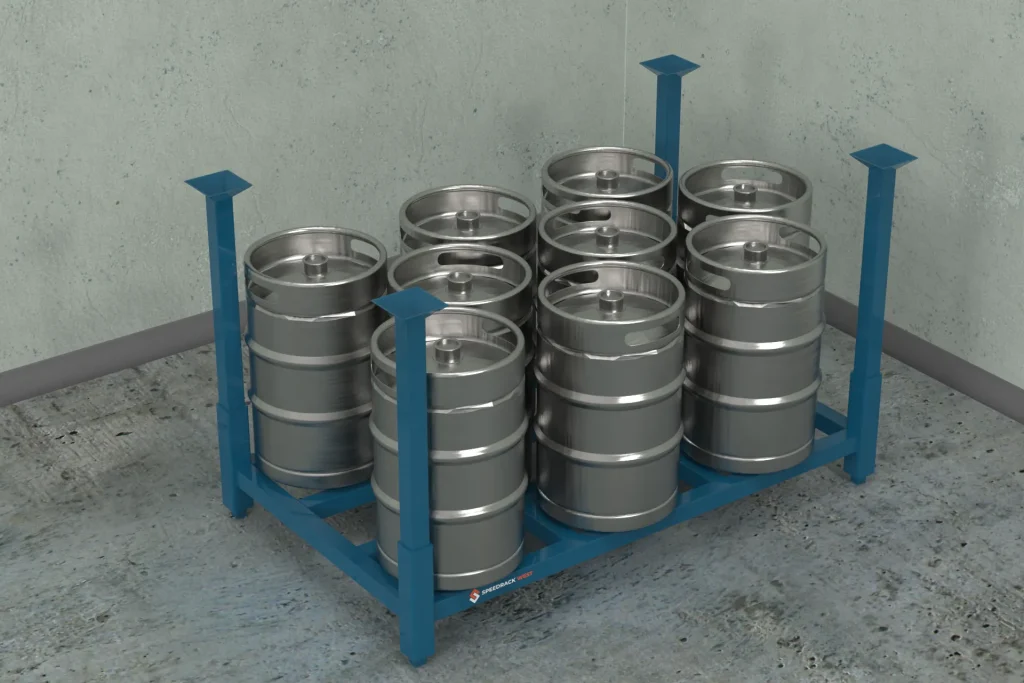

• Kegs, crates, cases
• Palletized goods
• Items that need rotation or mobile storage

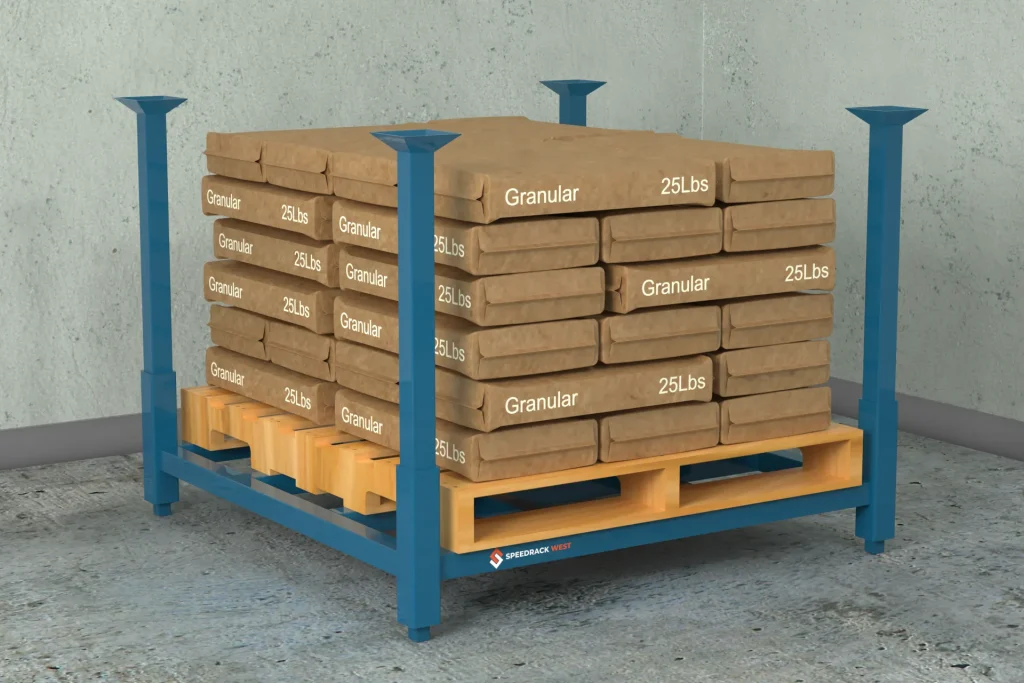

Bulk Bag / Super Sack Storage

• With optional hooks or side rails
• Common in chemical, plastics, feed, and recycling operations

If you need storage that can expand, collapse, move, or reconfigure quickly, stacking racks are usually the best solution.

Why Warehouses Prefer Stack Racks

• Instant vertical storage — stack 3–5 levels high
• Portable — move full racks with a forklift
• Flexible layout — reconfigure in minutes
• Nesting design — empty bases nest to save floor space
• Zero installation — no anchors, no permits
• Durable steel base — holds 2,000 lbs (default)
• Heavy-duty 4,000 lb version available by request
• Compatible with standard warehouse pallets

Choosing the Right Base Size

All sizes fit standard 40×48 pallets but offer different clearance and footprint options:

• 42″ × 48″ — most common, fits standard pallets with minimal extra footprint
• 48″ × 48″ — adds side-to-side clearance; good for bulk bags, irregular loads

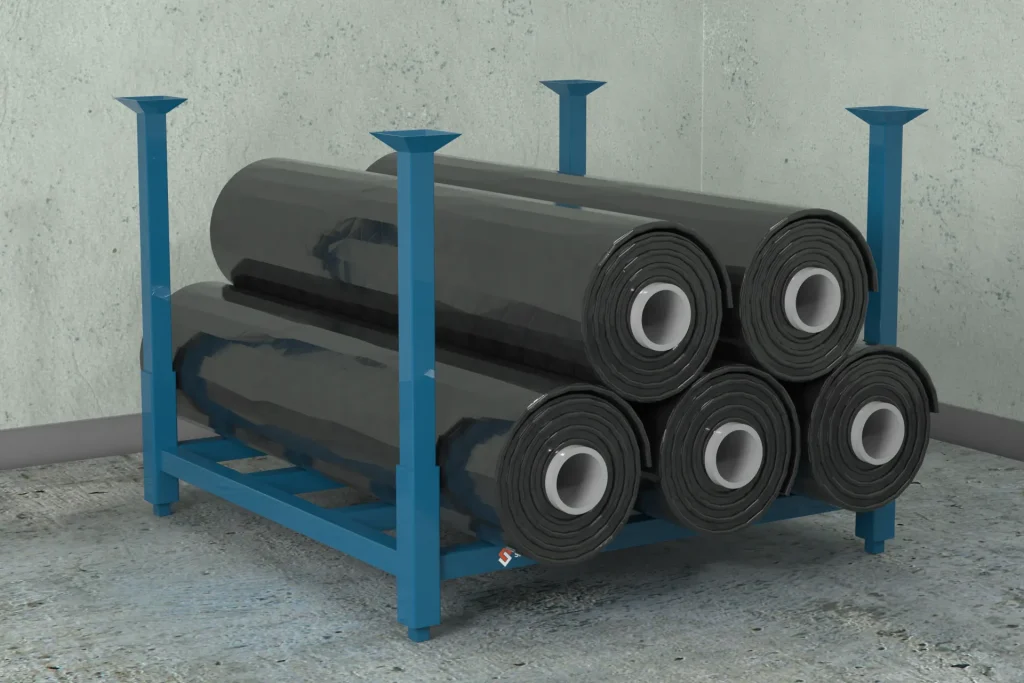

• 42″ × 60″ or 36″ × 60″ — ideal for long products, textile rolls, lumber bundles
• 60″ × 60″ — maximum deck area; great for large items, totes, agricultural goods

If unsure, choose the smallest base that fully supports your pallet or bundle, or contact us for sizing help.

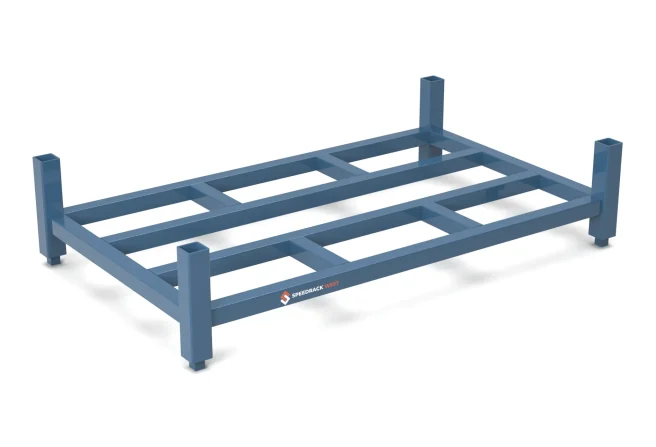

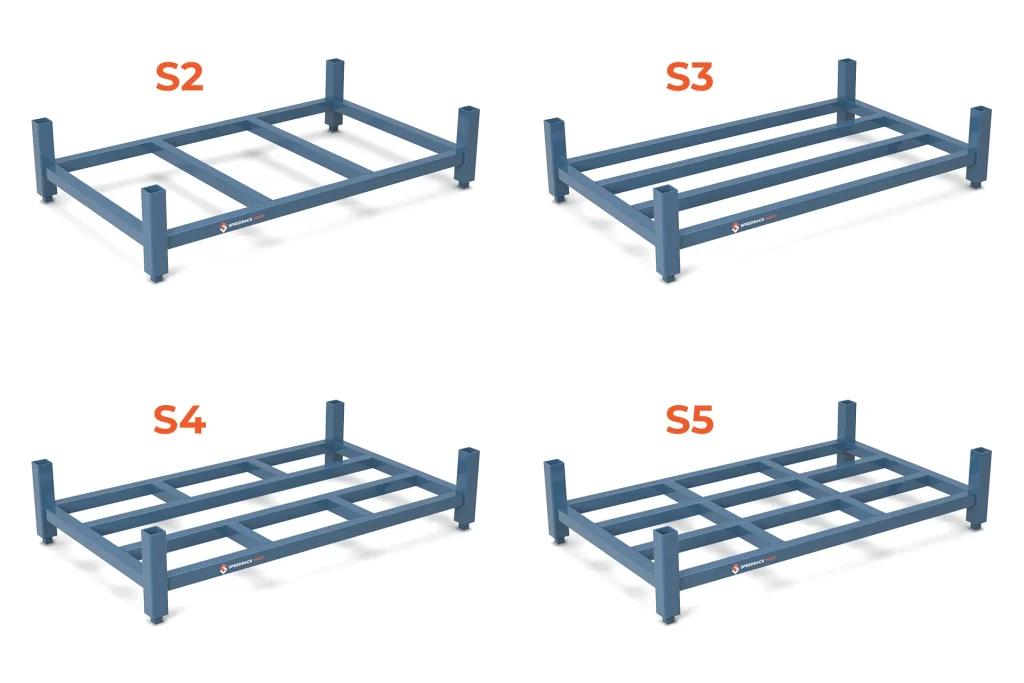

Base Pattern Options

Default base pattern: S-4 (balanced grid)

Other patterns available upon request.

• S-2: Two wide beams — for large, rigid pallets
• S-3: Narrower support spacing — better for moderately sized loads
• S-4 (Default): 4-way balanced grid — ideal for general warehouse pallets
• S-5: Dense grid — for heavy loads, smaller containers, or when adding decking

Targets vs. Caps (What’s Included)

Included with every base:

• 6″×6″ Base Stacking Targets
• Corner Upright Sockets

Included with posts:

• 4″×4″ Upright Targets

Available by request:

• Pyramid Caps
• Flat Caps (used only in specialized non-post or custom stacking configurations.)

Optional Add-Ons (Available by Request)

Most customers only need the base + posts.

If your load requires something unique, these options are available:

Decking Options

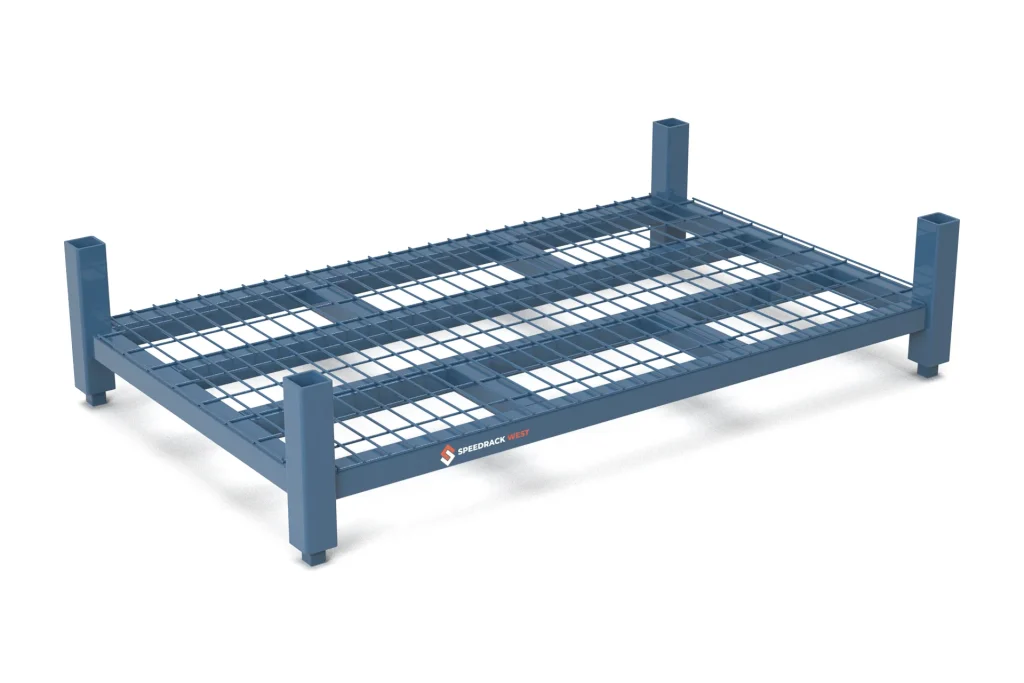

Wire mesh — supports totes, cartons, and smaller items

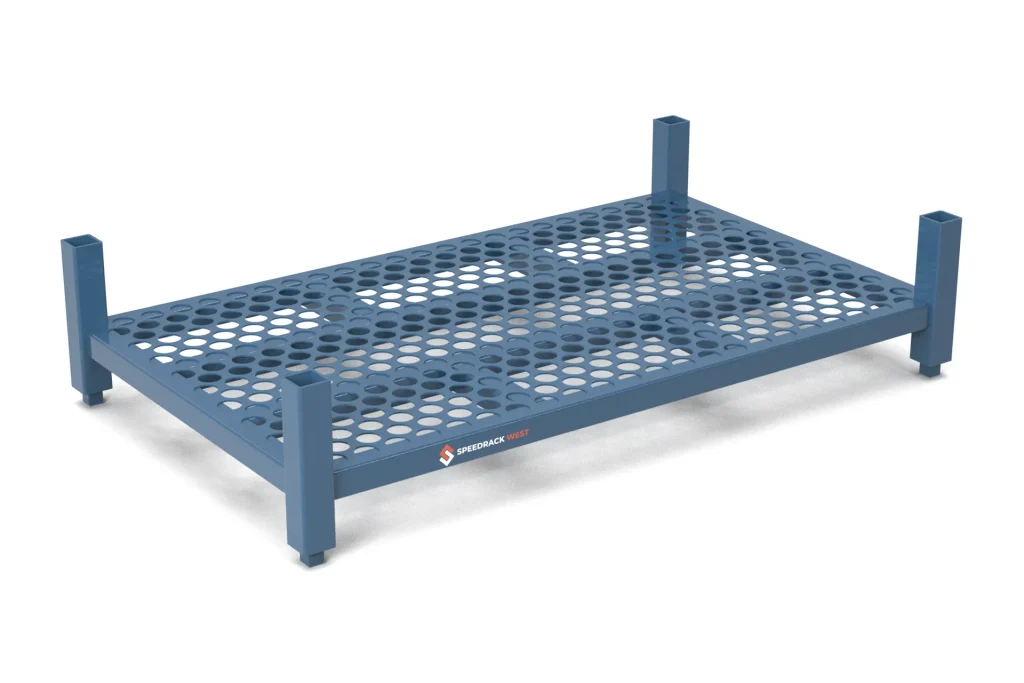

Perforated steel — airflow/drainage for produce, food, cold storage

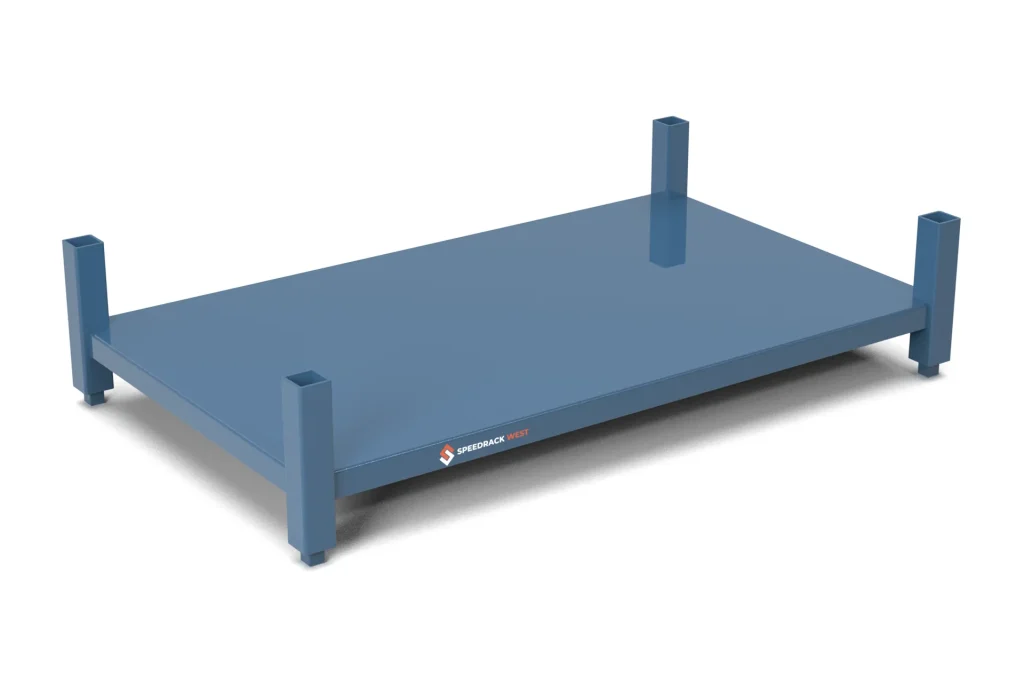

Solid sheet metal — rigid, heavy-duty flat surface

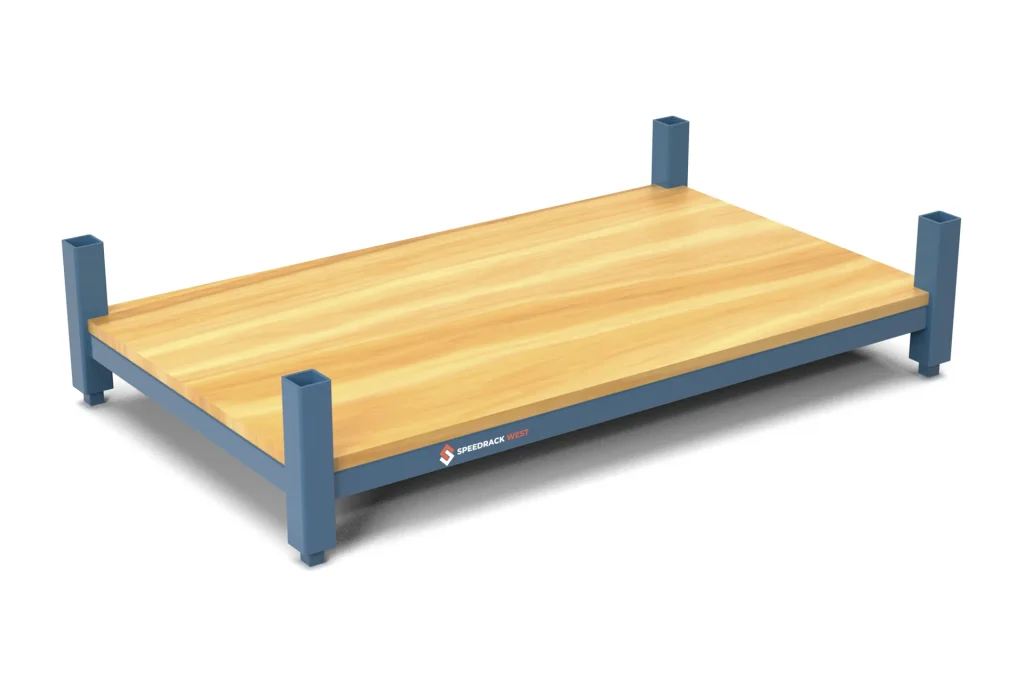

Plywood — economical deck for dry goods

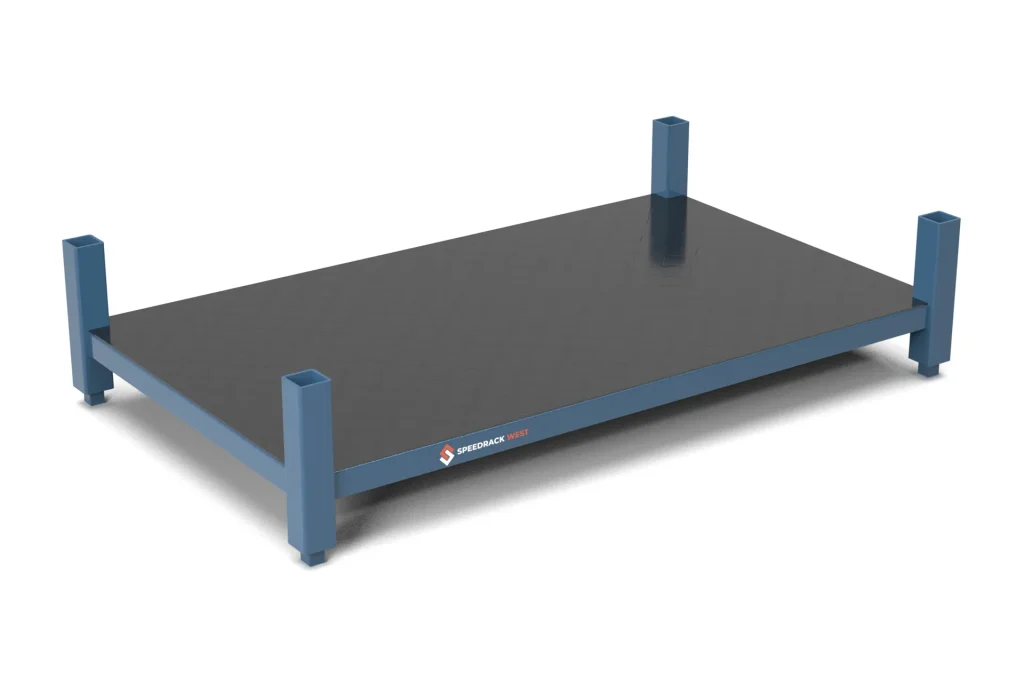

Plastic decking — lighter alternative for corrosion-sensitive items

Material Handling Enhancements

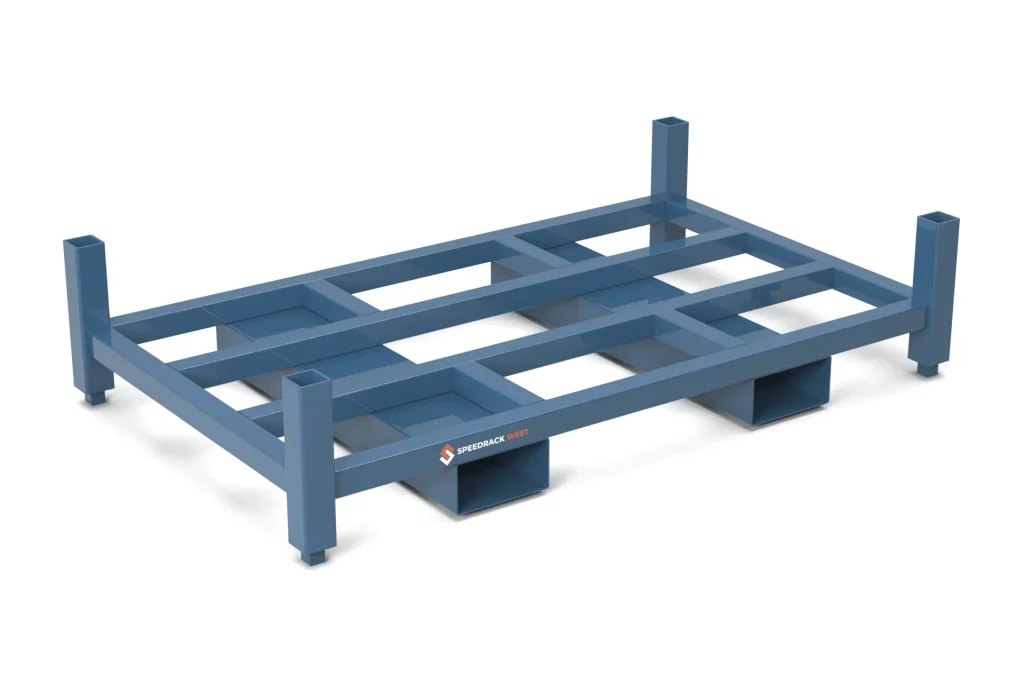

Fork Tubes — dedicated forklift pockets for 4-way entry or heavier SKUs

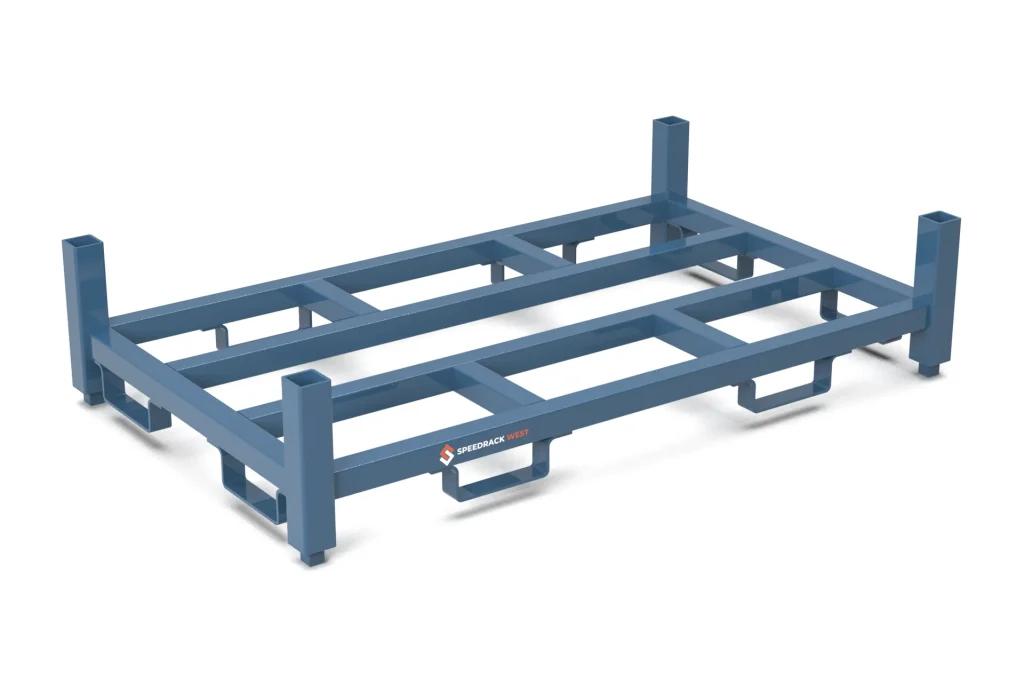

Forklift Stirrups — additional pickup points when maneuvering in tight areas

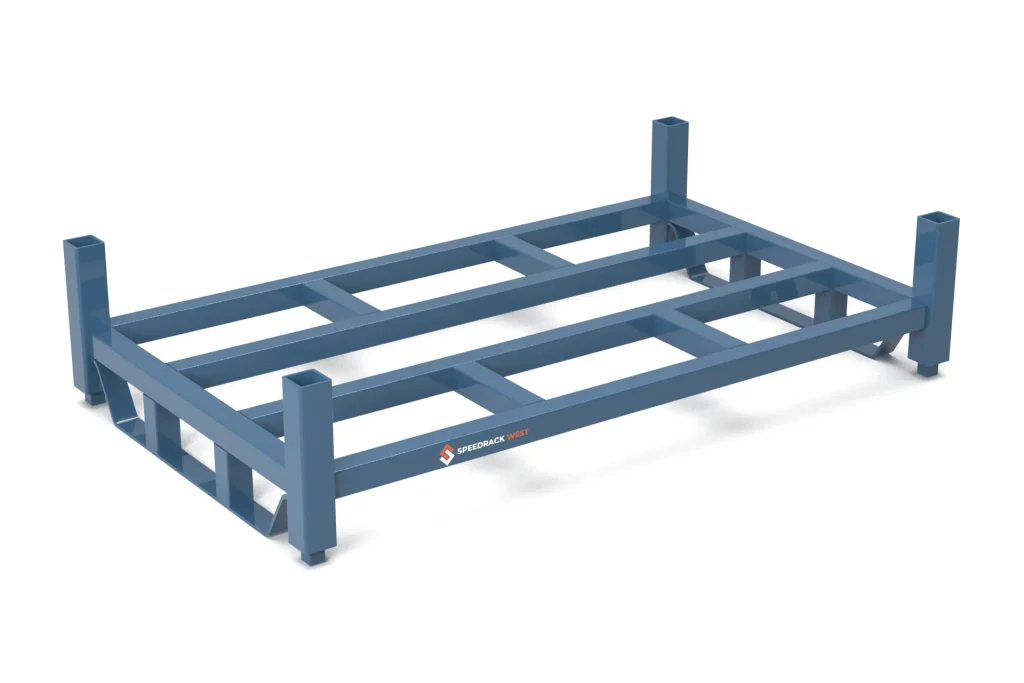

Runners — full-length or partial runners for weight distribution and sliding

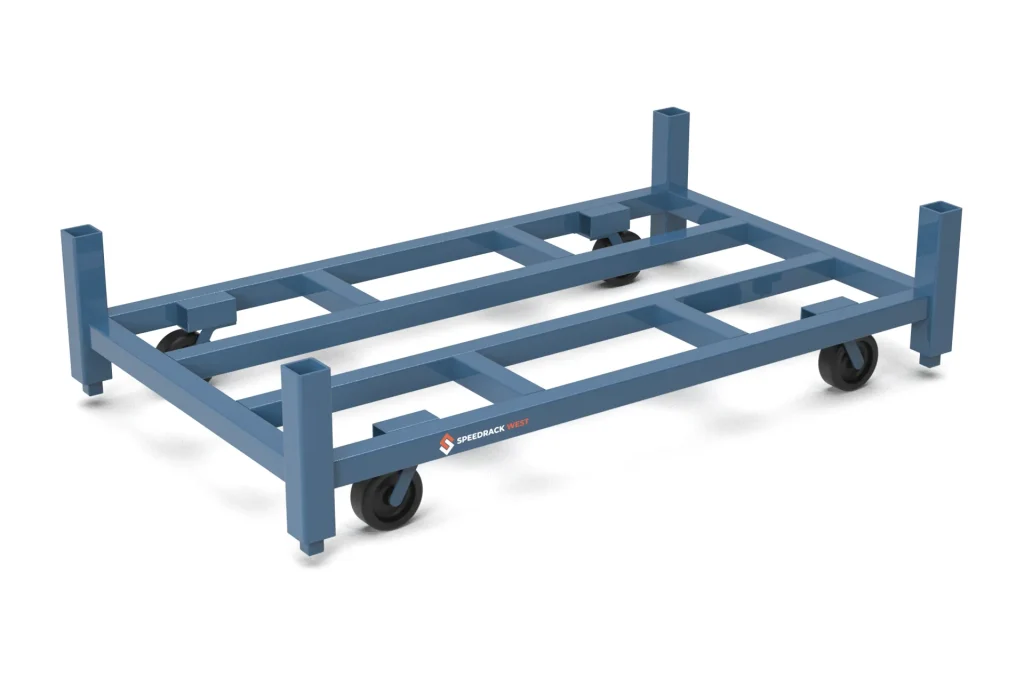

Casters — convert a rack into a mobile cart (swivel & locking options)

Containment & Load Control

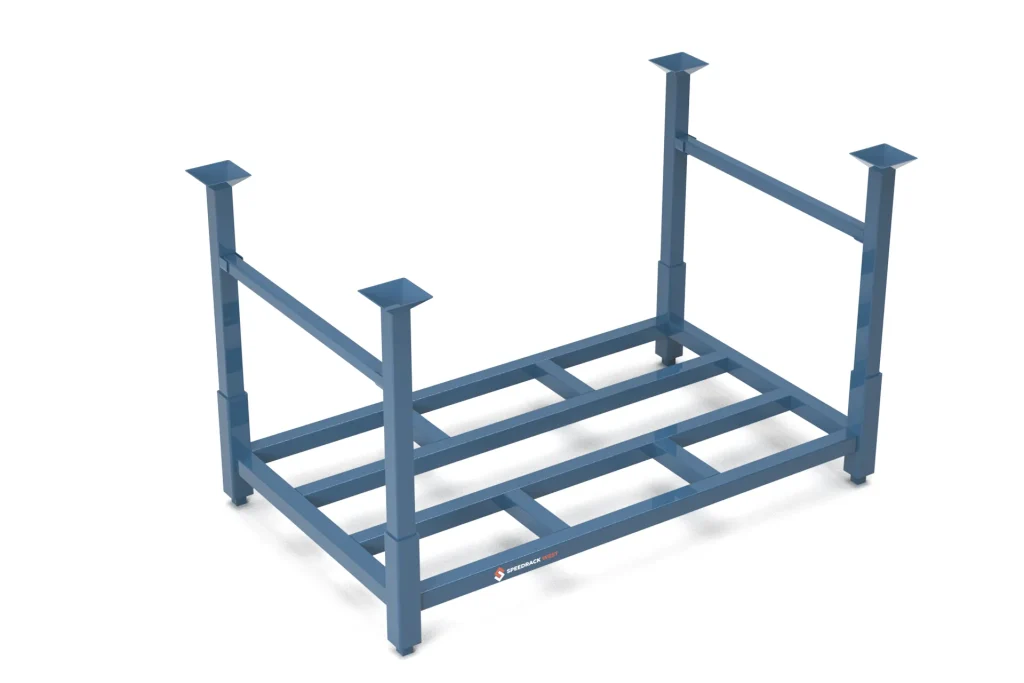

Side Braces — prevent shifting of tall or soft goods

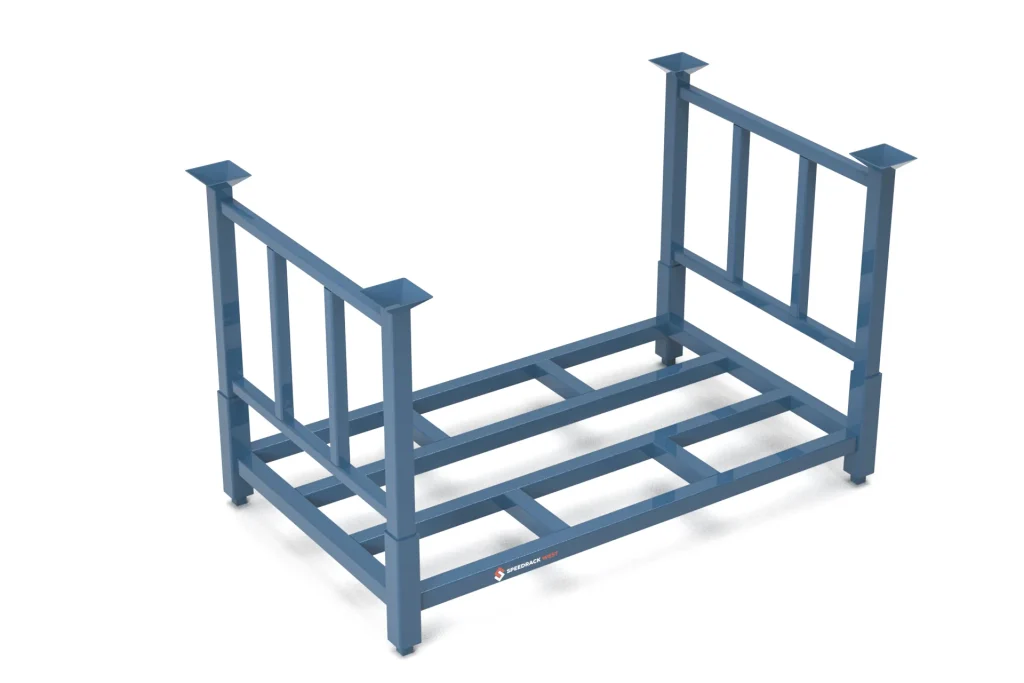

Side Rails / Panels — create caged sides

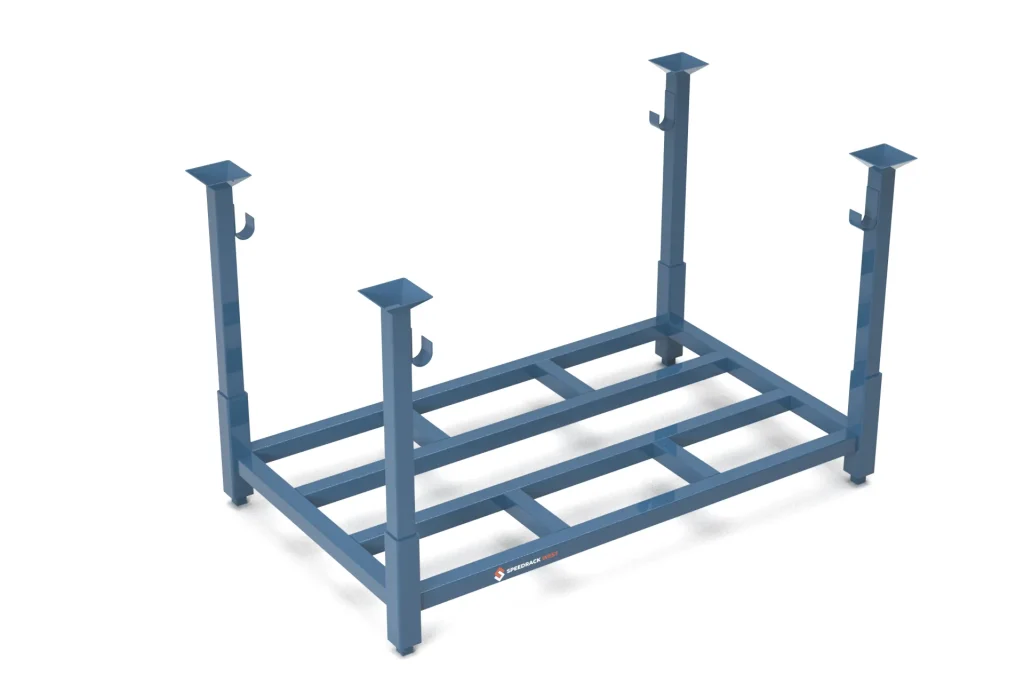

Hooks — used for super sacks, bulk bags, slings

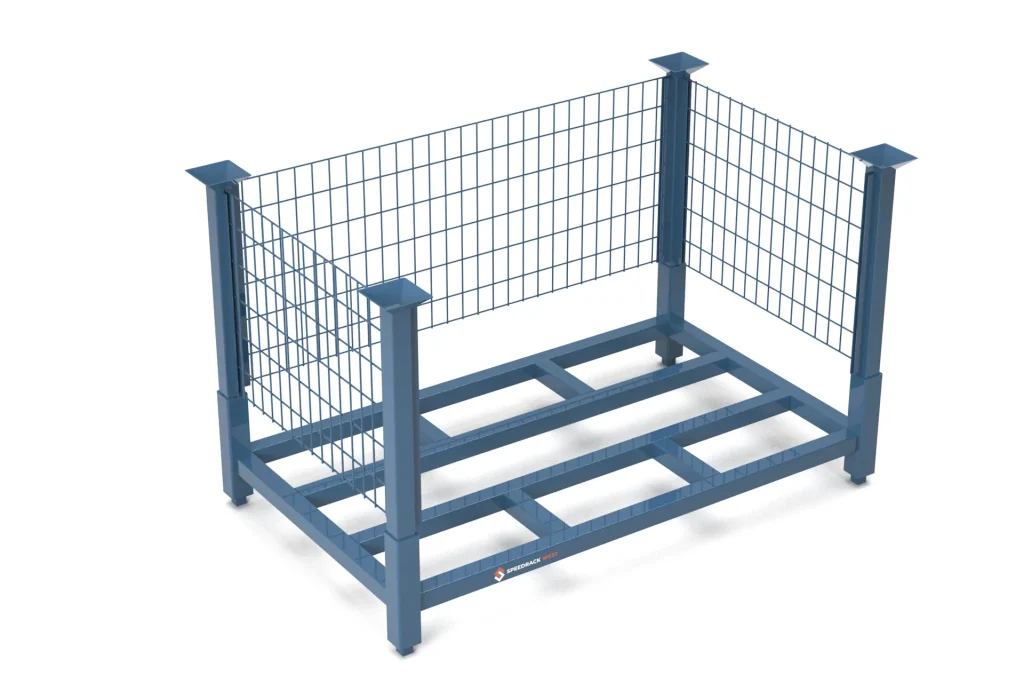

End-Frames — structural containment on one or more sides

Customization

• Custom sizes
• Custom colors (standard color: blue)
• Custom base patterns
• Engineering assistance for unique loads

Need Help Selecting Base, Posts, or Load Capacity?

Our team will size your rack for:

• Load weight
• Product dimensions
• Handling method (pallet jack, forklift, clamp truck)
• Number of stack levels
• Facility clearances

Call 503-640-5666 or request a quote, and we’ll recommend the safest, most cost-efficient configuration.
