Box Style Slider Bed Belt Conveyor

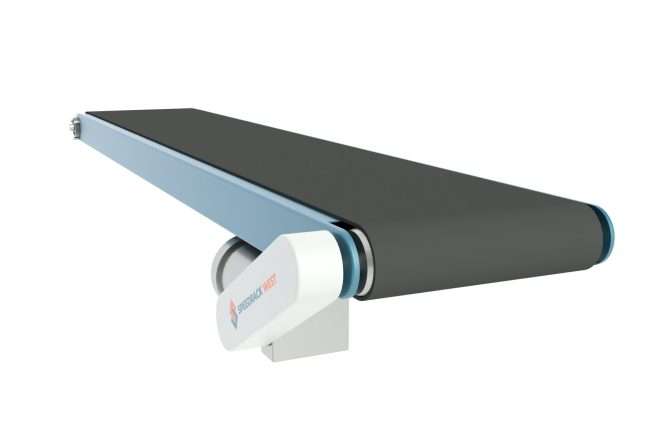

An image displaying a conveyor with optional structures and features.
Box Style Slider Bed Belt Conveyor
from $3,329.47 ea
Key Features
-
Versatile and economical
-
Perfect for medium duty applications
-
Custom sizes and configurations are available
-
Conveyor supports sold separately (NOTE: choose conveyor supports that match the BF widths of the conveyors you wish to order)
Delivery Terms
-
Special Manufacturer Rates
Access exclusive pricing
Access exclusive pricing
-
Nation-wide Shipping
Great rates & lead time across the country
Great rates & lead time across the country
-
Order What You Need
Avoid overpaying by talking to our experts today!
Avoid overpaying by talking to our experts today!
Delivery Terms
-
Special Manufacturer Rates
Access exclusive pricing
Access exclusive pricing
-
Nation-wide Shipping
Great rates & lead time across the country
Great rates & lead time across the country
-
Order What You Need
Avoid overpaying by talking to our experts today!
Avoid overpaying by talking to our experts today!
Key Features
-
Versatile and economical
-
Perfect for medium duty applications
-
Custom sizes and configurations are available
-
Conveyor supports sold separately (NOTE: choose conveyor supports that match the BF widths of the conveyors you wish to order)
Description
Every conveyor system is custom-designed to meet your specific needs. We start by understanding your requirements, including the types of products to be handled, their dimensions, and your throughput goals. With this information, we tailor conveyor solutions that align perfectly with your operational demands, ensuring a cost-effective and efficient material handling solution. Contact us.
Model 450BOS Slider Bed Belt Conveyor is one of the most popular and common means of transporting goods. It can be used for packing, testing, inspecting and a variety of assembly line operations. 450BOS features a box style slider bed, ideal for workers stationed alongside the conveyor.
What is a Box Style Slider Bed Belt Conveyor?
Slider Bed Conveyors (a.k.a. belt conveyors) are one of the most versatile conveyor types available. Slider bed conveyors have a belt that slides along a solid surface. This particular model has a 12 gauge steel channel frame with a 14 gauge steel slider frame.
How does it operate?
The motor is mounted on the side of the conveyor section. It uses a drive pulley to pull the belting across the slider bed surface. Its design provides smooth conveyance for odd-shaped or unstable products. Station workers alongside the conveyor belt system to perform multiple functions during the manufacturing process.
Where are these used?
Slider bed style conveyors can be used to transport loose parts, boxes, small pallets & more. This conveyor is ideal when your production line needs to move loose/bulky materials. These conveyors are generally used in areas where space is limited. It can also be used for trash and dunnage handling applications. Not recommended for heavy duty or abrasive materials.
Need more than just a Box Style Slider Bed Belt Conveyor?
There are many more conveyor belt systems that are available for any application you might have. Check out our shop to see what other conveyors we have available to order online, or contact us so we can help create a custom solution for your business.
Also check out the manufacturer’s general product catalog for all the conveyor types and conveyor options that can be purchased through us. Custom configurations and lengths are also available.
Industries utilizing Box Style Slider Bed Belt Conveyors
-
Mining and quarrying
-
Bulk material handling
-
Construction Sites
-
Agriculture
-
Warehousing
-
Distribution
-
Manufacturing
-
Airports
-
Postal services
Want to Make Sure It Fits?
or
Specifications
-
Belting
PVC-120 black -
Drive Pulley
4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged -
Tail Pulley
4″ dia., crowned, with 1-3/16″ dia. shaft -
End Drive
Allows one-direction (unit) operation; add optional center drive for reversible application -
Take-Up
Screw type unit at tail pulley provides 12″ belt take-up -
Bearings
All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings -
Return Rollers
1.9″ dia. x 16 ga. steel, model 196S, adjustable -
Belt Speed
60 FPM, constant -
Bed
4-1/2″” x 12 ga. channel frame with 14 ga. slider bed 9″-27″ BF; 12 ga. bed 33″ BF and above with bed pan braces -
Floor Supports

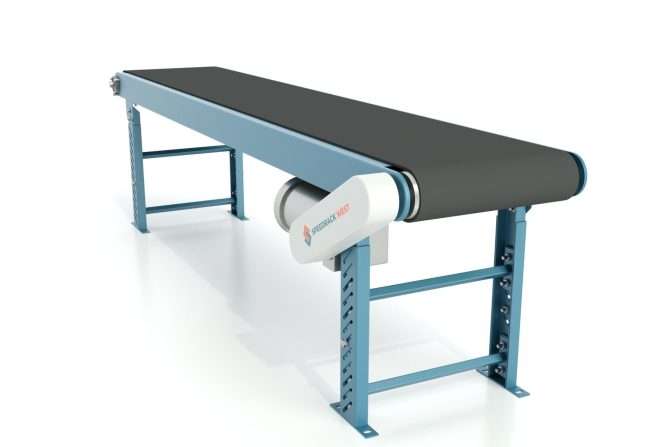

Optional (shown in image, but not included in price) -
Motor Drive
1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor -
Roller Chain
Drive pulley driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base -
Safety Pop-Out Rollers
Mounts into slot on bracket for safety design. Use of connector bracket eliminates dangerous pinch points -
Electrical Controls
Optional
