Trough Bed Belt Conveyor

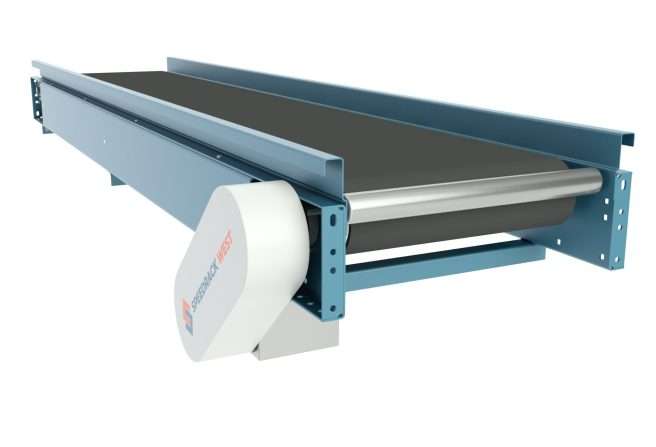

An image displaying a conveyor with optional structures and features.
Trough Bed Belt Conveyor
from $3,190.53 ea
Key Features
-
Trough design keeps loose material on conveyor.
-
Quickly move large volumes through your facility.
-
Custom lengths and configurations available.
-
Conveyor supports sold separately (NOTE: choose conveyor supports that match the BF widths of the conveyors you wish to order).
-
Contact Us for custom sizing or additional options/features.
Delivery Terms
-
Special Manufacturer Rates
Access exclusive pricing
Access exclusive pricing
-
Nation-wide Shipping
Great rates & lead time across the country
Great rates & lead time across the country
-
Order What You Need
Avoid overpaying by talking to our experts today!
Avoid overpaying by talking to our experts today!
Delivery Terms
-
Special Manufacturer Rates
Access exclusive pricing
Access exclusive pricing
-
Nation-wide Shipping
Great rates & lead time across the country
Great rates & lead time across the country
-
Order What You Need
Avoid overpaying by talking to our experts today!
Avoid overpaying by talking to our experts today!
Key Features
-
Trough design keeps loose material on conveyor.
-
Quickly move large volumes through your facility.
-
Custom lengths and configurations available.
-
Conveyor supports sold separately (NOTE: choose conveyor supports that match the BF widths of the conveyors you wish to order).
-
Contact Us for custom sizing or additional options/features.
Description
The Trough Bed Belt Conveyor is ideal for handling chips, slugs, scrap wood, paper waste, boxes, packages, cartons and much more. Every conveyor system is custom-designed to meet your specific needs. We start by understanding your requirements, including the types of products to be handled, their dimensions, and your throughput goals. With this information, we tailor conveyor solutions that align perfectly with your operational demands, ensuring a cost-effective and efficient material handling solution. Contact us.
The trough bed belt conveyor is a type of slider bed conveyor. It has an open trough with guide rails to transport loose material. sing an open center concave pan section (and a variety of belt sizes & types) the conveyor belt for sale quickly moves large volumes through your facility.
How does it operate?
Slider bed conveyors have a belt that slides along a solid surface. This particular version also has troughed rails on either side to keep bulk material confined to the belt situated in between. It is designed to keep work areas and internal parts clear while keeping loose material moving along the conveyor. Textured & cleat topped belts can also be used.
Where are these used?
Trough conveyors are designed for keeping loose or bulky materials in the center of the conveyor—especially with abrasive materials. Trough Bed Belt Conveyors are ideal for handling chips, slugs, scrap wood, paper waste, boxes, packages, cartons and much more. The troughed frame design offers integral guard rails for many trash conveyor applications, minimizing spillage over the transport distance.
Need more than just a Trough Bed Belt Conveyor?
There are many more conveyor systems that are available for any application you might have. Check out our shop to see what other conveyors we have available to order online, or contact us so we can help create a custom solution for your business.
Also check out the manufacturer’s general product catalog for all the conveyor types and conveyor options that can be purchased through us. Custom configurations and lengths are also available.
Industries utilizing Trough Bed Belt Conveyor
-
Mining and quarrying
-
Bulk material handling
-
Construction Sites
-
Agriculture
-
Warehousing
-
Distribution
-
Manufacturing and Assembly Lines
-
Airports
-
Postal Services
-
Distribution
Want to Make Sure It Fits?
or
Specifications
-
Belting
PVC-120 black. -
Drive Pulley
4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged. -
Tail Pulley
4″ dia., crowned, with 1-3/16″ dia. shaft. -
End Drive
Allows one-direction (unit) operation; add optional center drive for reversible application. -
Take-up
Screw type unit at tail pulley provides 12″ belt take-up. -
Bearings
All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings. -
Return Rollers
1.9″ dia. x 16 ga. steel, model 196S, adjustable. -
Belt Speed
60 FPM, constant. -
Bed
7″ deep x 12 ga. box type bed with bed pan braces (all widths) and with 2-1/2″ deep x 12 ga. formed trough with formed flanges on sides to provide extra strength. -

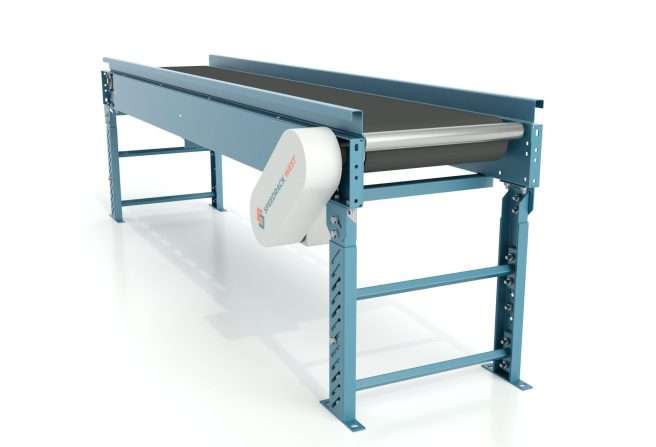

Floor Supports
Optional (shown in image, but not included in price) -
Motor Drive
1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor. -
Roller Chain
Drive pulley driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base. -
Safety Pop-out Rollers
Standard on both ends, 1.9″ dia x 16 ga. steel roller, model 196S. -
Electrical Controls
Optional
